576x576E Die-cast Aluminum Cabinet Series Rental LED Displays

576x576E series rental LED displays have good heat dissipation, high brightness, low power consumption, simple appearance and ultra-thin and ultra-light cabinet. The products have excellent dustproof and waterproof rates. Seamless connection and precise modules get a smooth viewing experience. High modularization design is convenient to repair.

DOWNLOAD
CONTACTE-NOS PARA MAIS INFORMAÇÕES

576E Series

576E is a robust 576 x 576mm LED Display panel that is designed for the high demands of the touring production world.

Cada placa é modular em design com recursos exclusivos de rigging e curvatura. Cada placa pode ser reparada na parte frontal para facilitar a manutenção no local. Sua escada de escalada integrada permite que os técnicos acessem rapidamente os monitores suspensos.

576E is the premier rental staging product on the market.

Grande escala de cinza, alta taxa de atualização e excelente equilíbrio de branco

Nossa tela usa material de alta qualidade, a escala de cinza é de até 14bits, taxa de atualização> 1920Hz e o balanço de branco é muito puro. Portanto, o desempenho da tela é extraordinário e estável.

Ângulo ajustável

O grande ângulo de visão cobre a maioria do público e das câmeras: Ser notado, valor comercial infinito.

Envelhecimento de teste

Todas as matérias-primas passam por testes rigorosos de alta / baixa temperatura e alta umidade, anti-raios ultravioleta, anti-corrosão.

Instalação fácil

Equipar com estrutura de instalação auxiliar, conexão rápida, instalação individual

Manutenção conveniente

Disponível para operar o módulo e caixa de alimentação separadamente

Cinza baixo

Low gray led display

CHENKSE LED Dipalys

Visores de LED comuns

Alta atualização

High refresh LED Display

CHENKSE LED Dipalys

Visores de LED comuns

Alto contraste

chenkse led2

CHENKSE LED Dipalys

Visores de LED comuns

576E 03

Die-cast aluminum cabinet

Size：576*576mm
Framematerial：Full die-cast aluminum
Module: 250*250mm
Weight: 8.5kg

With a high refresh rate of 3840Hz, the screen picture has a sense of layering, clear and detailed, true colors, no water ripples, no smearing!

Advantages of die-cast aluminum material:

Lightweight: One person can carry it with one hand, easy to install.


Thin: Die-cast aluminum has high strength, good toughness,high precision, is not easy to deform, and is easy to transport.

Reliable: high strength and hardness, good heat dissipation effect, which is beneficial to prolong the service life of the screen.

Standard Cabinet Size 576 x 576mm

576x576mm standard size cabinet design, suitable for all LED display units. It features a 288x288mm double-sided lock design for a more secure installation.

576E 01
576E 05

Perfect Structural Design

While adhering to the spirit of innovation, the Indoor Outdoor 576X576E SERIES Rental LED Display explains structure design and rigorous quality testing.
The product has improved the design quality, and embodies the human-centred rule.

CONTACTE-NOS PARA MAIS INFORMAÇÕES

Smooth Display And Visual Effects

The advanced assembled structure produces smooth display and visual effects, providing you with the perfect visual performance you want from your LED display. Image quality remains high due to better quality display materials.

37

High Refresh Rate, High Contrast, High Brightness

Rental LED display has high brightness, high contrast, high refresh rate, high gray scale, LED display with vivid picture, clean video screen and great picture quality.

Corner Prtection For Choose

You can choose to add the corner protection, designed to protect corners in both transit and staging.

576E 04

Amplo ângulo de visão

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

CONTACTE-NOS PARA MAIS INFORMAÇÕES

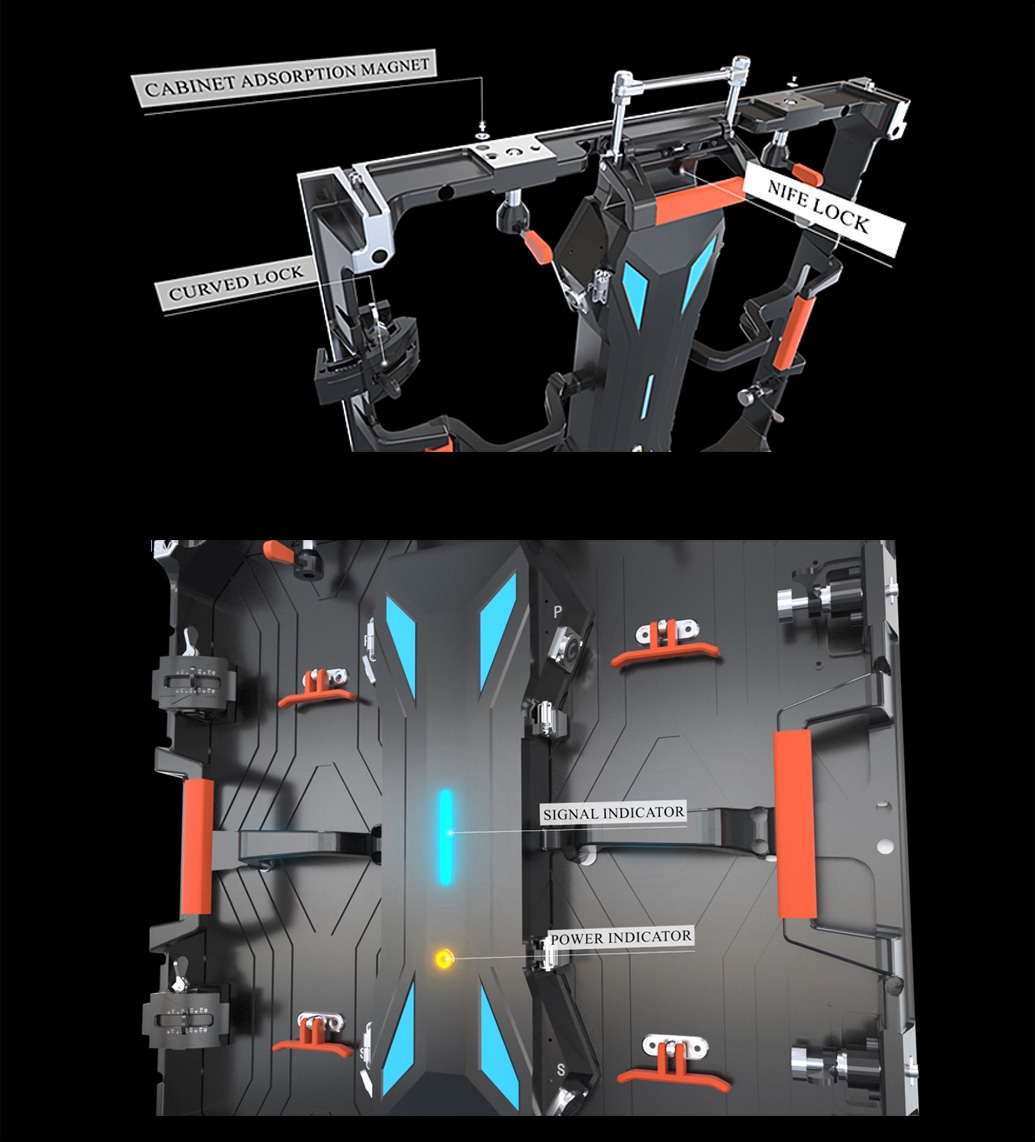

Projeto de serviço duplo

A tela de LED para locação adota painel de LED de adsorção magnética para fazer com que o gabinete seja acessado com design frontal e traseiro. fácil instalação para painéis de LED.

Fast lock, simply rotate the angle lock to quick switch the splicing angle, instelation speed increased by 40%. Tools free for fast maintenance and apply to all kinds of operating environment. Power box supports quick intallation. The cabinet use super slim Die-casting Aluminum, which can protect the unit structure.

576E 06(1)
576E 02

Superior Functions

With Curved lock,Outer Arc 10,inner Arc 15.Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.Lightweight Die-Casting Cabinet move easy . It can adapt to different application scenarios. 576E Series can also provide customized LED display solutions for customers according to their needs.

Instalação fácil

Equipar com estrutura de instalação auxiliar, conexão rápida, instalação individual

Accessories Optional
Back Brackets are mainly for indoor outdoor stacking installation on wall;
Hanging Bars are ideal for indoor outdoor hanging installation on truss.
Easy Istallation
06

LED exibe a função de mídia de entrada

1. Interface DVI

Interface DVI, nomeadamente interface de vídeo digital.

2. Interface VGA

A interface VGA é uma interface dedicada para dados de saída de computador usando o padrão VGA.

3. Interface HDMI

HDMI é interface standard. Seu nome completo é High-Definition Multimedia Interface.

4. Interface SDI

Adote cabo coaxial, com interface BNC como cabo padrão.

5. Interface USB

Barramento serial universal.

6. Função WIFI e nuvem

Função WIFI e nuvem para substituir remotamente o conteúdo de vídeo e imagem do display LED por meio do computador

Campos de Aplicação

Widely used in transportation information release at stations, docks, airports, conferences, shopping centers, brands, and advertising signs display; Television, large-scale theatrical performances, live broadcast display of concert images, and other different occasions.

CONTACTE-NOS PARA MAIS INFORMAÇÕES
Application 01

Parâmetros

Item Model No.

576E

Tamanho do Gabinete

576*576 mm*68mm

Cabinet weight

4.2kg(Aluminum door)
Suite and Power supply  NOT INCLUDED

Material do Gabinete

Aluminum

Cabinet Installation

Girder Hoisting/Ground stacking installation

Maintain Method

Front/Back

Cabinet Color

Navy/Red

Application Scope of Pixel Pitch

P3/P3.79/P4.8/P6

Working Invironment

Indoor and outdoor（-40°~60°）

Standard Accessories
NOT INCLUDED

1 door
1 Handle, Can be grasped on 3 sides
2 Positioning Pins
1 electrical installation board
2 connection pieces
4 quick locks

Suites Quan.
NOT INCLUDED

4 pcs of 288mm×288mm modules/Cabinet
