576x576E Die-cast Aluminum Cabinet Series Rental LED Displays

576x576E series rental LED displays have good heat dissipation, high brightness, low power consumption, simple appearance and ultra-thin and ultra-light cabinet. The products have excellent dustproof and waterproof rates. Seamless connection and precise modules get a smooth viewing experience. High modularization design is convenient to repair.

576E Series

576E is a robust 576 x 576mm LED Display panel that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

576E is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

Low gray led display

CHENKSE LED Dipalys

Ordinary LED displays

High refresh

High refresh LED Display

CHENKSE LED Dipalys

Ordinary LED displays

High contrast

chenkse led2

CHENKSE LED Dipalys

Ordinary LED displays

576E 03

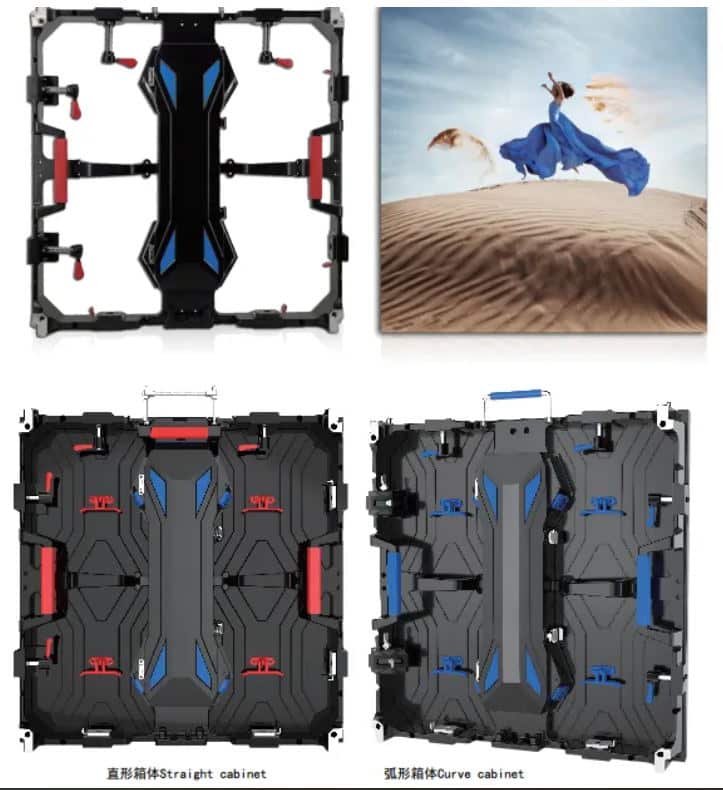

Die-cast aluminum cabinet

Size:576*576mm
Framematerial:Full die-cast aluminum
Module: 250*250mm
Weight: 8.5kg

With a high refresh rate of 3840Hz, the screen picture has a sense of layering, clear and detailed, true colors, no water ripples, no smearing!

Advantages of die-cast aluminum material:

Lightweight: One person can carry it with one hand, easy to install.


Thin: Die-cast aluminum has high strength, good toughness,high precision, is not easy to deform, and is easy to transport.

Reliable: high strength and hardness, good heat dissipation effect, which is beneficial to prolong the service life of the screen.

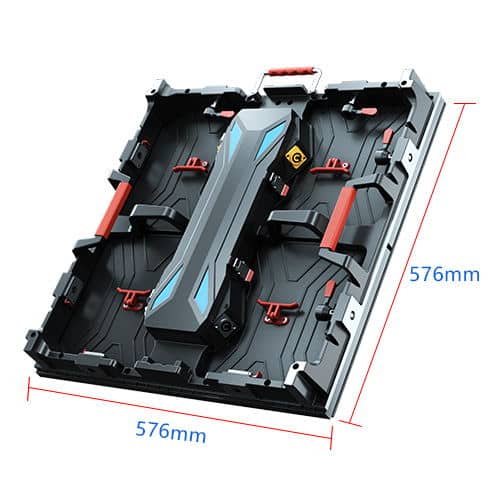

Standard Cabinet Size 576 x 576mm

576x576mm standard size cabinet design, suitable for all LED display units. It features a 288x288mm double-sided lock design for a more secure installation.

576E 01
576E 05

While adhering to the spirit of innovation, the Indoor Outdoor 576X576E SERIES Rental LED Display explains structure design and rigorous quality testing.
The product has improved the design quality, and embodies the human-centred rule.

Smooth Display And Visual Effects

The advanced assembled structure produces smooth display and visual effects, providing you with the perfect visual performance you want from your LED display. Image quality remains high due to better quality display materials.

37

High Refresh Rate, High Contrast, High Brightness

Rental LED display has high brightness, high contrast, high refresh rate, high gray scale, LED display with vivid picture, clean video screen and great picture quality.

Corner Prtection For Choose

You can choose to add the corner protection, designed to protect corners in both transit and staging.

576E 04

Wide Viewing Angle

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

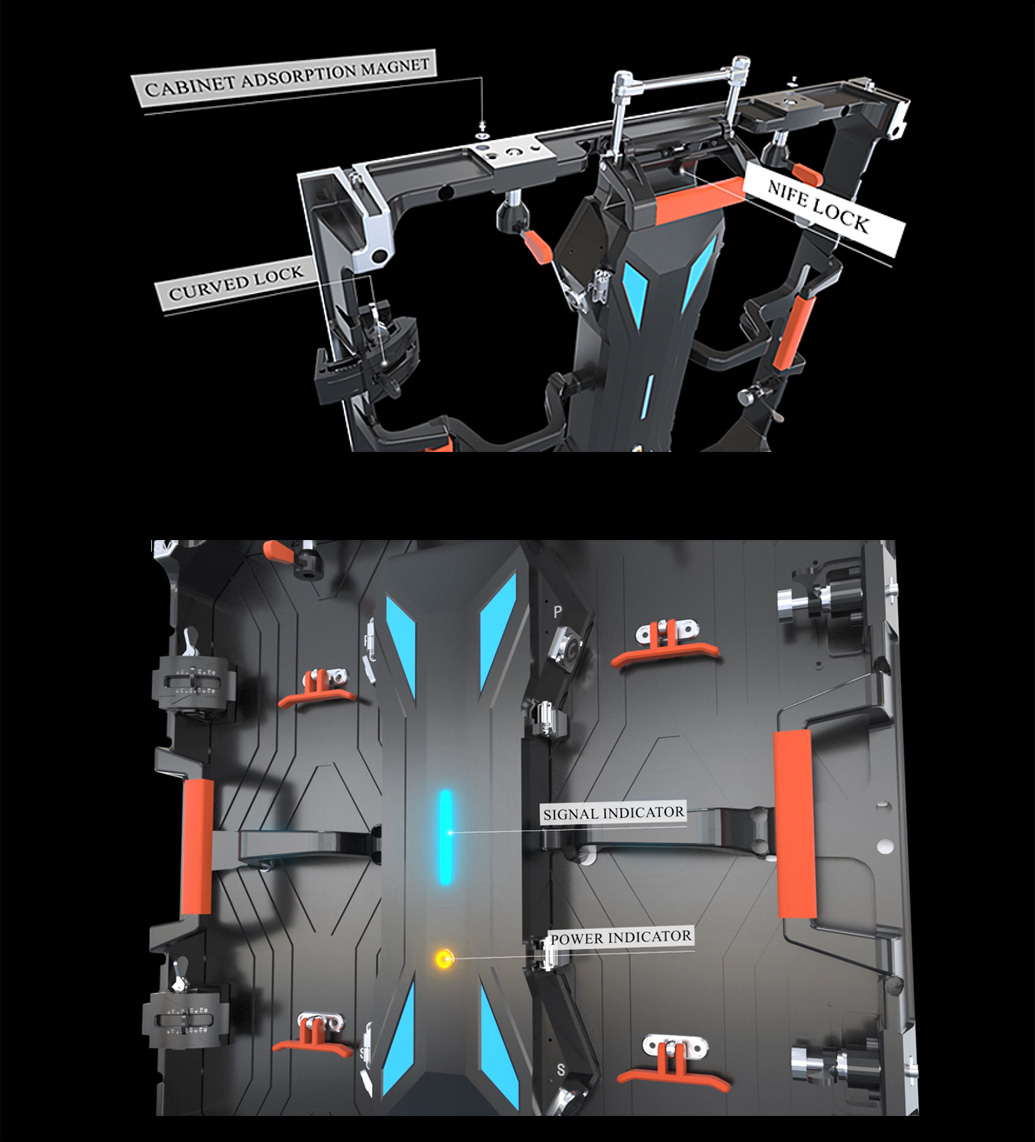

Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

Fast lock, simply rotate the angle lock to quick switch the splicing angle, instelation speed increased by 40%. Tools free for fast maintenance and apply to all kinds of operating environment. Power box supports quick intallation. The cabinet use super slim Die-casting Aluminum, which can protect the unit structure.

576E 06(1)
576E 02

Superior Functions

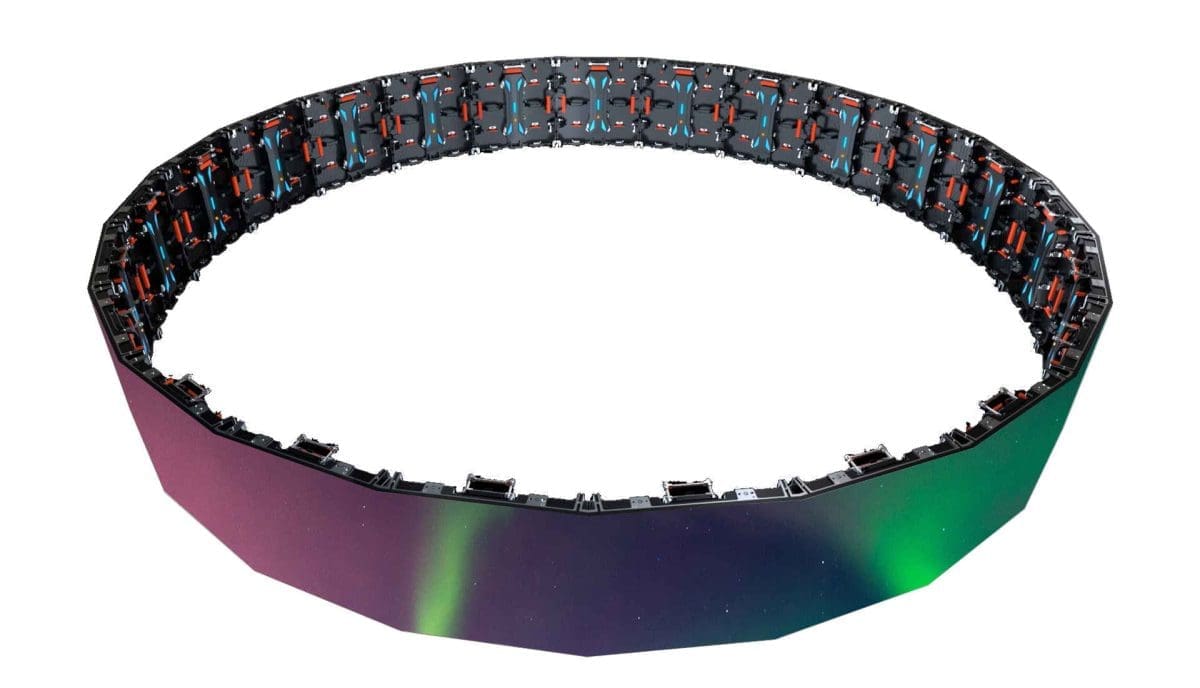

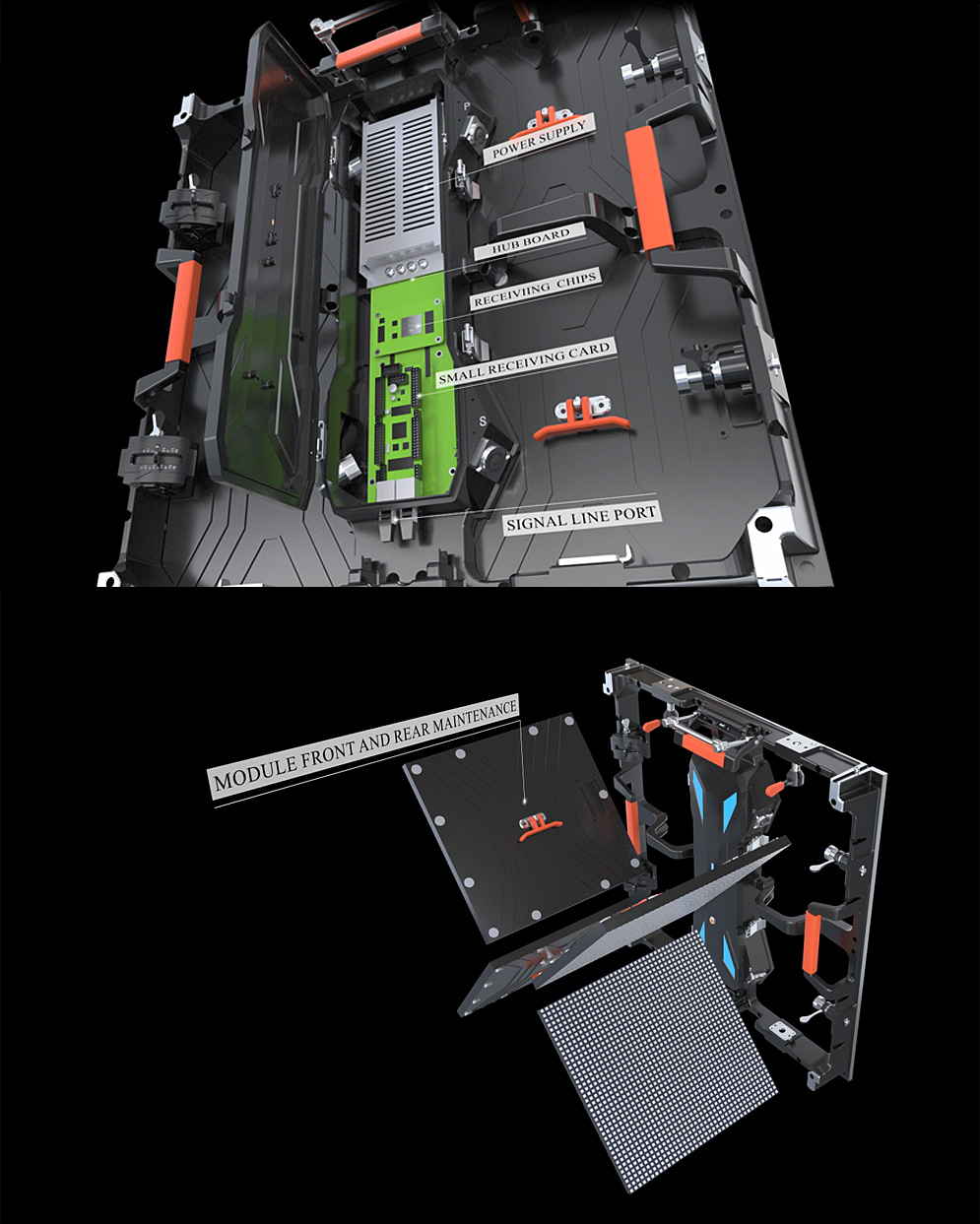

With Curved lock,Outer Arc 10,inner Arc 15.Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.Lightweight Die-Casting Cabinet move easy . It can adapt to different application scenarios. 576E Series can also provide customized LED display solutions for customers according to their needs.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Accessories Optional
Back Brackets are mainly for indoor outdoor stacking installation on wall;
Hanging Bars are ideal for indoor outdoor hanging installation on truss.
Easy Istallation
06

LED Displays Input Media Function

1. DVI interface

DVI interface, namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is High-Definition Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

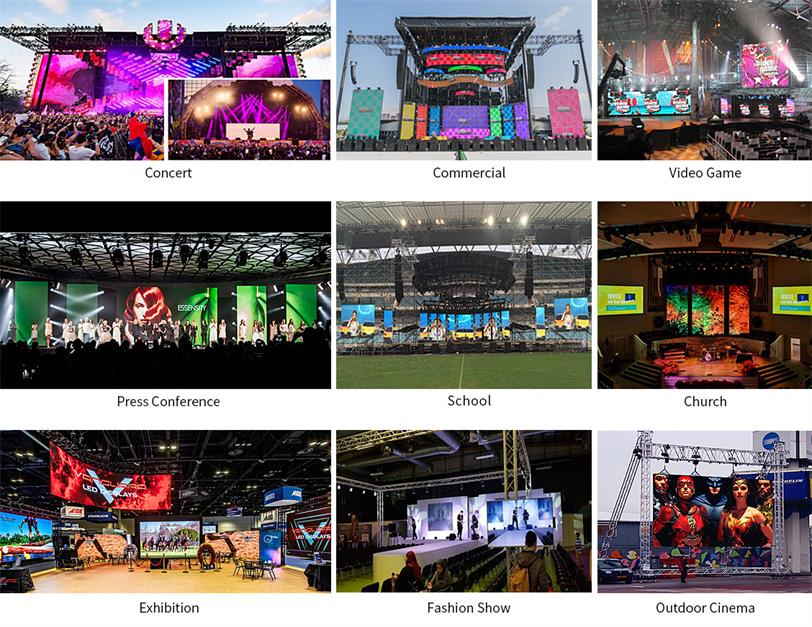

Application Fields

Widely used in transportation information release at stations, docks, airports, conferences, shopping centers, brands, and advertising signs display; Television, large-scale theatrical performances, live broadcast display of concert images, and other different occasions.

Application 01

Parameters

Item Model No.

576E

Cabinet Size

576*576 mm*68mm

Cabinet weight

4.2kg(Aluminum door)
Suite and Power supply  NOT INCLUDED

Cabinet Material

Aluminum

Cabinet Installation

Girder Hoisting/Ground stacking installation

Maintain Method

Front/Back

Cabinet Color

Navy/Red

Application Scope of Pixel Pitch

P3/P3.79/P4.8/P6

Working Invironment

Indoor and outdoor(-40°~60°)

Standard Accessories
NOT INCLUDED

1 door
1 Handle, Can be grasped on 3 sides
2 Positioning Pins
1 electrical installation board
2 connection pieces
4 quick locks

Suites Quan.
NOT INCLUDED

4 pcs of 288mm×288mm modules/Cabinet
