CUI26- P2.6 Stage Curved LED Video Walls
Rental Curved LED screens Can be spliced into inner arc, outer arc, circular arc, elliptical arc, semi-circular arc LED display. The LED die-cast box can be spliced to the required arc.
Features of curved LED display:
1. The arc between the two cabinets can be adjusted freely (15 degrees, -15 degrees).
2. The cabinet s formed by a high-precision die-casting machine, with high strength, good toughness, accurate precision, light weight and good flatness.
3. Side lock die-casting alloy fittings, beautiful appearance, fast precision, simple disassembly, strong tensioning force, and high safety performance.
4. Good heat dissipation effect, can be hoisted or fixedly installed, and the box splicing is simple and quick.
CUI Series-CUI26
CUI26 is a robust 500 x 500mm / 500 x 1000mm LED panel that is designed for The screen is made into concave, convex, S-shaped and other shapes.
Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.
Great gray scale, high refresh rate and excellent white balance
Our LED Screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.
Angle adjustable
Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
Test aging
All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Convenient Maintenance
Available to operate the module and power box separately.

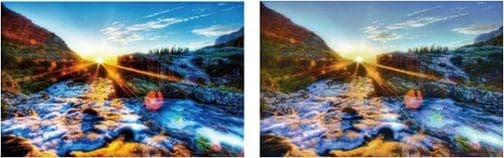

Low gray
CUI Series LED Dipalys
Ordinary LED displays

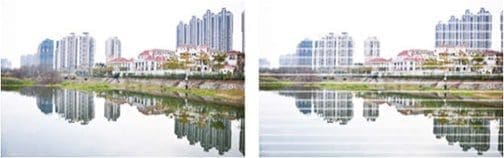

High refresh
CUI Series LED Dipalys
Ordinary LED displays
High contrast
CUI Series LED Dipalys
Ordinary LED displays
CUI LED DISPLAYS is composed of many 16:9 LED cabinet .
The resolution can reach 2K/4K/8k, without any stitching and gaps. the most significant feature.
The colors are more natural, to bring the real content to life.
Light, Thin and Strong
Die-casting aluminum frame, the cabinet weight is only 7.4kg

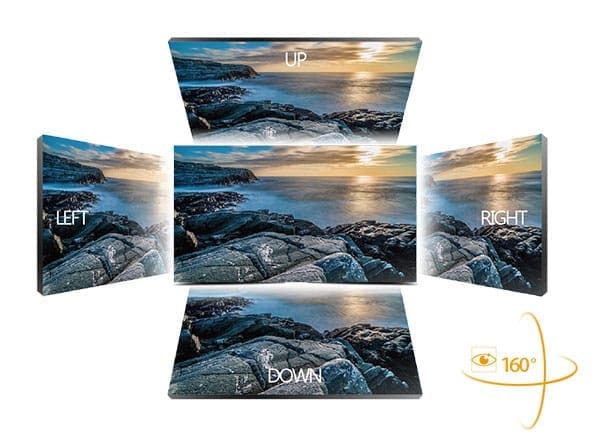

Wide viewing angle
The vertical and horizontal viewing angles can reach up to 160°. providing a wide viewing angle.

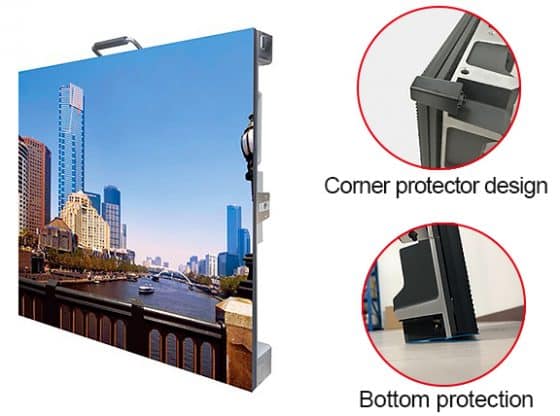

Excellent Protection Gadgets
The panel has bottom module protection design. There are two anti-collision pins at the bottom of the panel to raise the bottom module up by 3mm and prevent it from crashing if the panel hits the floor. Meanwhile, it also has strong and safety locking system.We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.

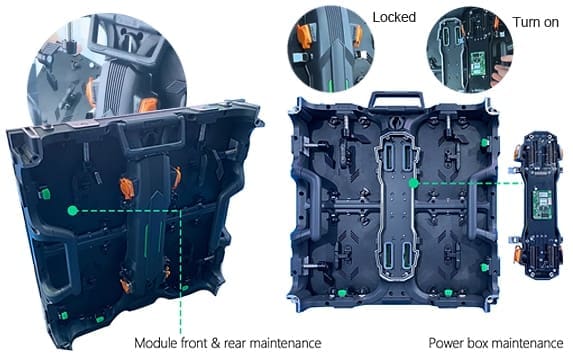

Dual Service Design
Module features

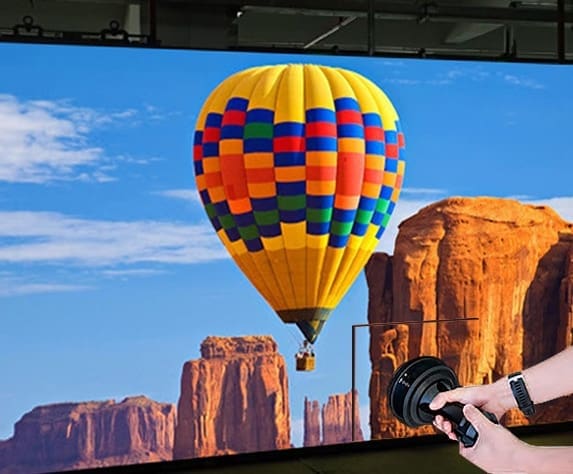

Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.
Double side locks design, make the screen build easily and keep perfect flatness;
The fast locks ensure the cabinet joint within 8 seconds;
Seamless precision die casting panel;
Handle friendly, easily lift up.
Full front service
Support full front access, it is convenient for future possible maintenance.
Very suitable for those projects which do not have the back-maintenance channel and stage events.
Easy Maintenance
Front access or back access design is used in this panel. The module’s slim shape makes it even much easier to maintain.

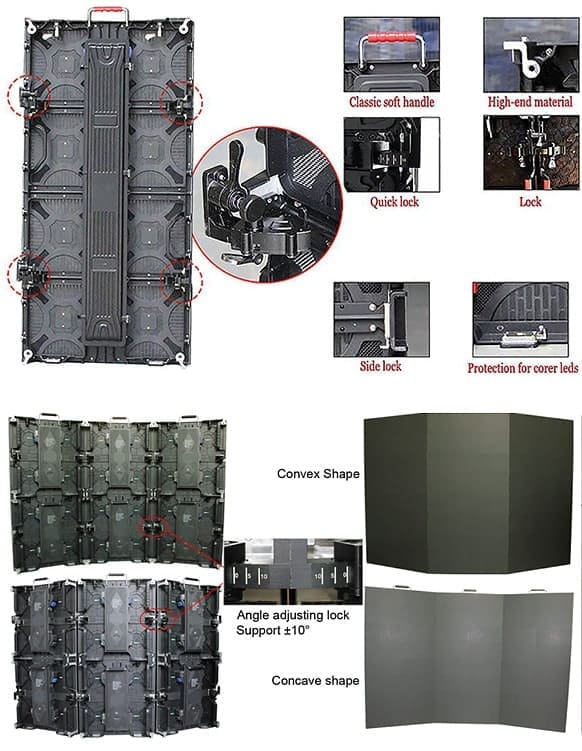

Portable and Easy Installation
Fast assembling
The spring rotary lock is convenient for disassemble and installation，and saves time greatly
Pulling handle
Slim and easy take handle
Lock
With angle adjusting lock enable to make the concave shape led video wall and convex shape led display.
Great Flatness
Owing to the high-tech soft module design, the screen can be done with concave, convex, S shape, etc, flat and seamlessly.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation

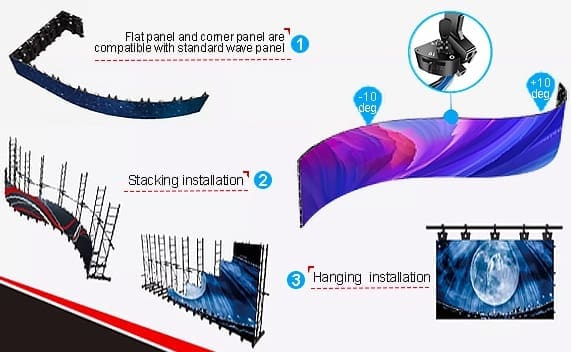

Curved Screen & Seamless Splicing
The cabinet equips high-precision angle lock, available to splice flat screen and curved screen

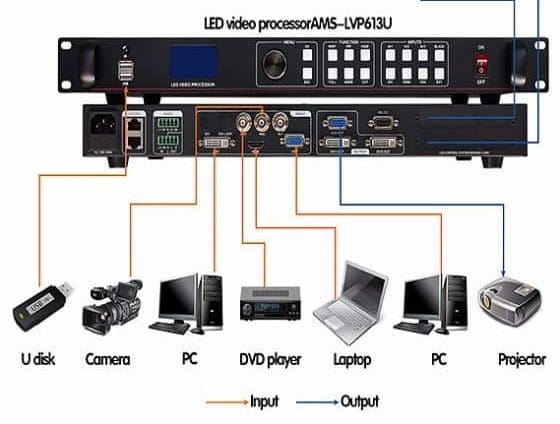

LED Displays Input Media Function
1. DVI interface
DVI interface, namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is High-Definition Multimedia Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

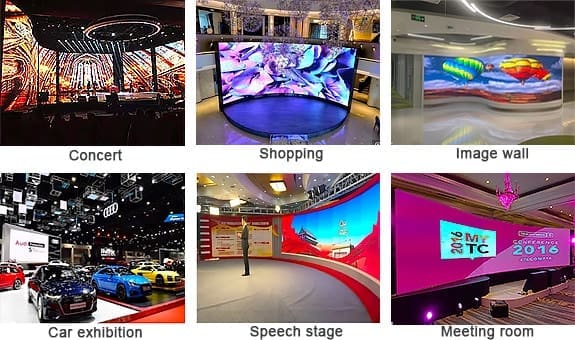

Application Fields
Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.
Parameters
LED Displays Parameter | ||
| Main | Model | CUI26 – P2.6 – 32S |
| Module | Pixel pitch (mm) | 2.604 |
| LED Lamp Model | SMD2121 | |
| Size (W*H) | 250 * 250 mm | |
| Resolution ( W*H) | 96 * 96 | |
| Driving Mode | Constant drive | |
| Scan Mode | 1 / 32 | |
| Pixel configuration (R,G,B) | 1R,1G,1B | |
| Color temperature (K) : | 3200-9300 | |
| Grey scale/colors | 14bit – 16bit | |
| Cabinet | Standard Cabinet Size (mm) | 500 * 500 * 70 |
| (W*H*T) | ||
| Resolution (W*H) | 192 * 192 | |
| Module Number | 4PCS | |
| IP Grade | IP31 | |
| Weigh(kg) | 6.5 | |
| Material | Die Casting Aluminum | |
| Display | Best Viewing Distance (m) | 2.6 – 100 |
| Pixel Density (dot / m2) | 147456 | |
| Brightness (cd / m2) | ≥1200 | |
| Power Max Consumption (W / m2) | ≤800 | |
| Power Average Consumption (W / m2) | 400 | |
| View angle | H:160; V:160 | |
| system Specification | Control host (CPU) : | Pentium4 or above |
| Operating system: | WIN7 / WIN8 / WIN10 | |
| Control method | Synchronous display with control PC by DVI | |
| Control System | Linsn, Nova-star, Colorlight or as you required | |
| Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | |
| Interface definition | HUB75 | |
| Frame Frequency | ≥60Hz | |
| Refresh frequency | 1920HZ / 3840HZ | |
| Transmission Distance | Multi mode fiber<500m, single mode fiber <30km,internet cable | |
| Operation Parameter | Working Voltage | AC220 ± 10% 50Hz / AC110 ± 10% 60Hz |
| storage Temperature | -45℃～+85℃ | |
| Working Temperature | -40℃～+65℃ | |
| Humidity | 10% – 95% | |
| Life Span Time | ≥100000 hours | |
| MTBF | ≥5,000hours | |
| Screen Plainness | ＜±1mm | |
| Blind Spot Rate | ＜0.0001 | |
| Certificate | CE, RoHS, FCC | |
