576x576E Die-cast Aluminum Cabinet Series Rental LED Displays

576x576E series rental LED displays have good heat dissipation, high brightness, low power consumption, simple appearance and ultra-thin and ultra-light cabinet. The products have excellent dustproof and waterproof rates. Seamless connection and precise modules get a smooth viewing experience. High modularization design is convenient to repair.

576E Series

576E is a robust 576 x 576mm LED Display panel that is designed for the high demands of the touring production world.

Her bir karo, benzersiz donanım ve kıvrılma yeteneklerine sahip tasarım açısından modülerdir. Yerinde kolay bakım için her bir karoya önden bakım yapılabilir. Entegre tırmanma merdiveni, teknisyenlerin tepeden uçulan ekranlara hızlı erişimini sağlar.

576E is the premier rental staging product on the market.

Harika gri tonlama, yüksek yenileme hızı ve mükemmel beyaz dengesi

Ekranımızda yüksek kaliteli malzeme kullanılmış, gri skala 14 bit'e kadar, yenileme hızı> 1920Hz ve beyaz dengesi çok saf. Yani ekranın performansı olağanüstü ve istikrarlı.

Açı ayarlı

Geniş izleme açısı, izleyicilerin ve kameraların çoğunu kapsar: Fark edilmek, sonsuz ticari değer.

Yaşlanma testi

Tüm hammaddeler, yüksek / düşük sıcaklık ve yüksek nem, anti-ultraviyole ışınları, anti-korozyonun sıkı bir şekilde test edilmesinden geçer.

Kolay Kurulum

Yardımcı kurulum yapısı, hızlı bağlantı, tek kişilik kurulum ile donatın

Uygun Bakım

Modülü ve güç kutusunu ayrı ayrı çalıştırmak için mevcuttur

Düşük gri

Low gray led display

CHENKSE LED Dipalys

Sıradan LED ekranlar

Yüksek yenileme

High refresh LED Display

CHENKSE LED Dipalys

Sıradan LED ekranlar

Yüksek kontrast

chenkse led2

CHENKSE LED Dipalys

Sıradan LED ekranlar

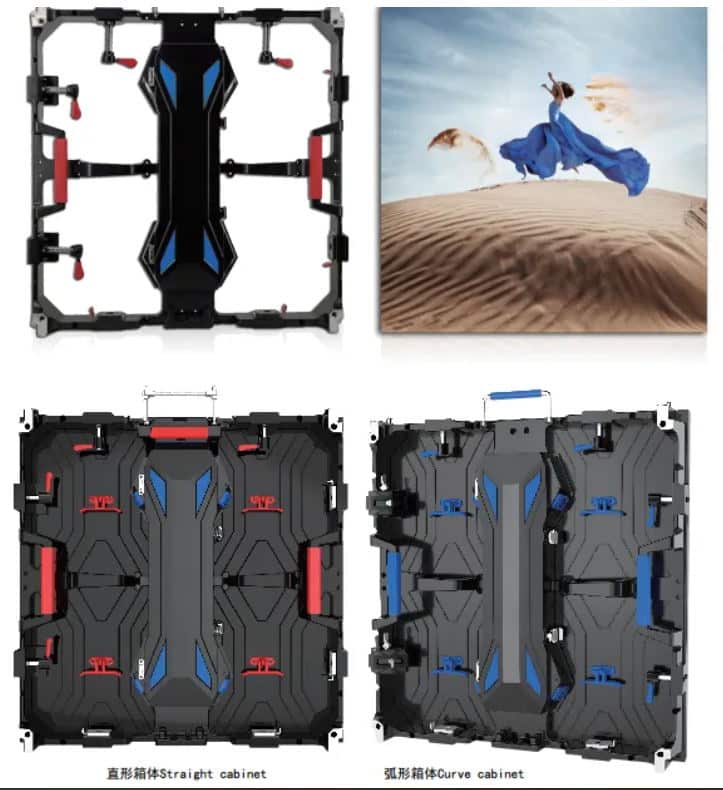

576E 03

Die-cast aluminum cabinet

Size:576*576mm
Framematerial:Full die-cast aluminum
Module: 250*250mm
Weight: 8.5kg

With a high refresh rate of 3840Hz, the screen picture has a sense of layering, clear and detailed, true colors, no water ripples, no smearing!

Advantages of die-cast aluminum material:

Lightweight: One person can carry it with one hand, easy to install.


Thin: Die-cast aluminum has high strength, good toughness,high precision, is not easy to deform, and is easy to transport.

Reliable: high strength and hardness, good heat dissipation effect, which is beneficial to prolong the service life of the screen.

Standard Cabinet Size 576 x 576mm

576x576mm standard size cabinet design, suitable for all LED display units. It features a 288x288mm double-sided lock design for a more secure installation.

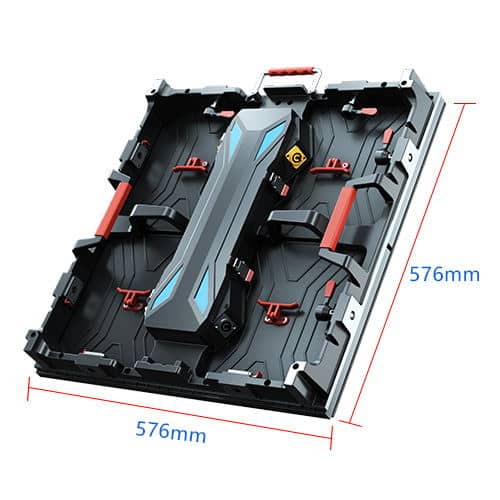

576E 01

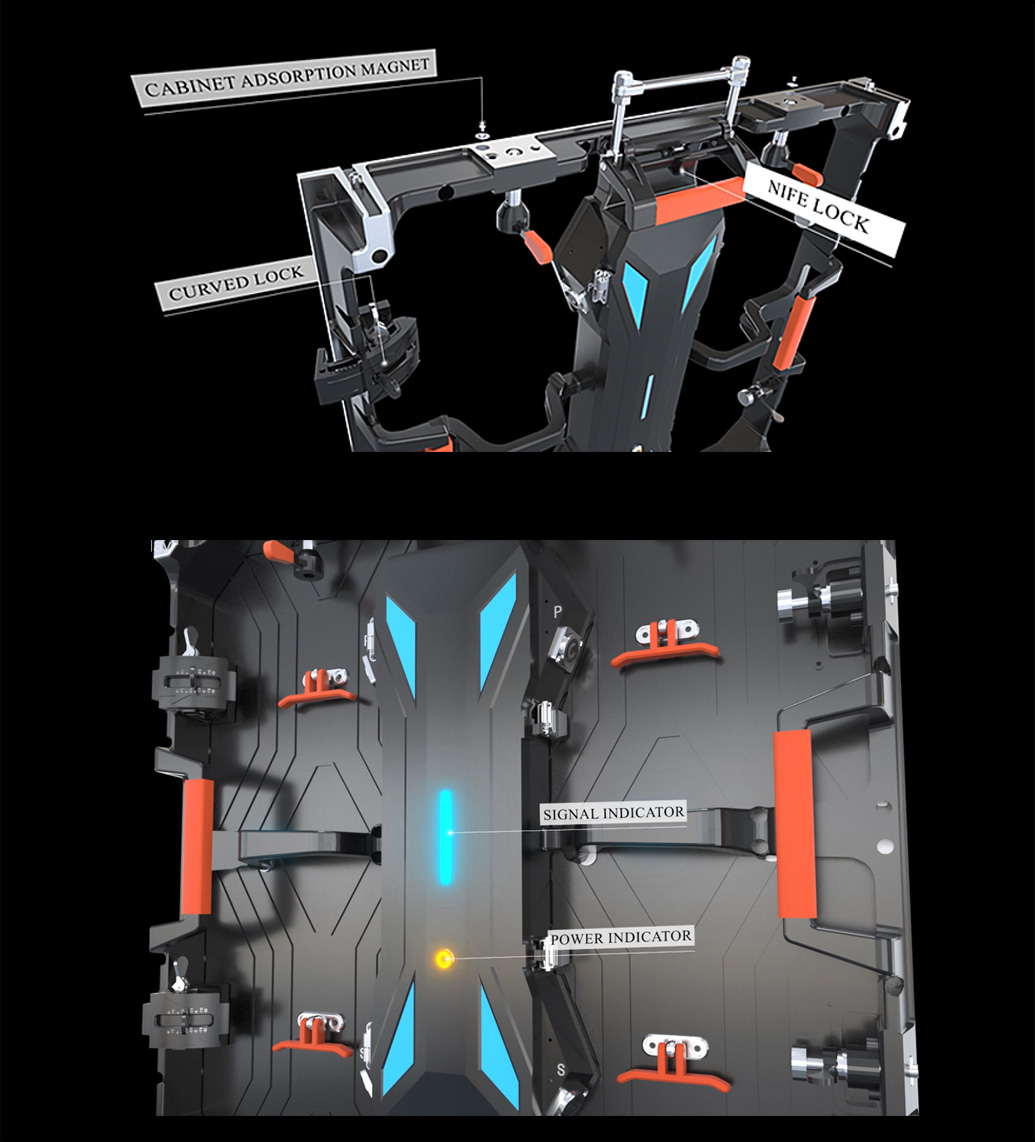

576E 05

While adhering to the spirit of innovation, the Indoor Outdoor 576X576E SERIES Rental LED Display explains structure design and rigorous quality testing.
The product has improved the design quality, and embodies the human-centred rule.

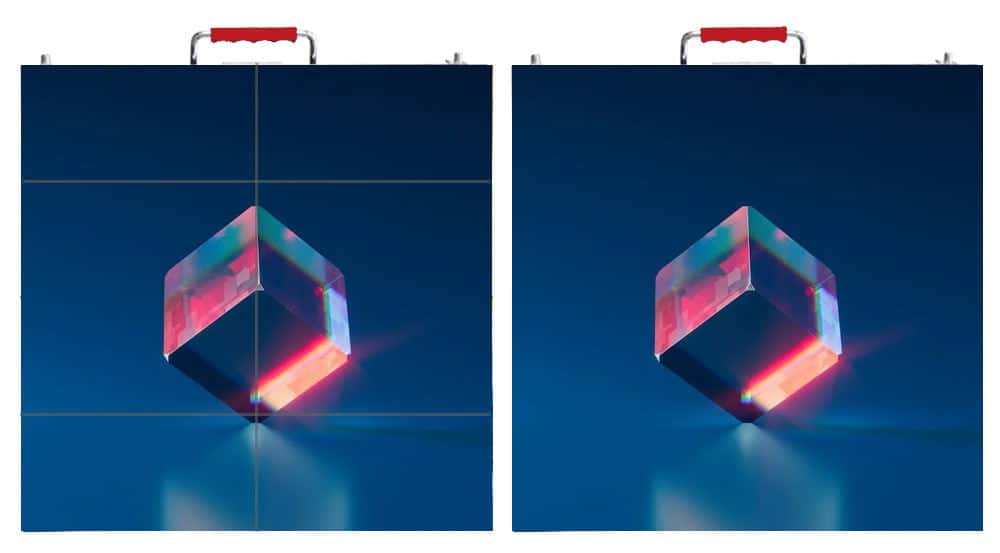

Smooth Display And Visual Effects

The advanced assembled structure produces smooth display and visual effects, providing you with the perfect visual performance you want from your LED display. Image quality remains high due to better quality display materials.

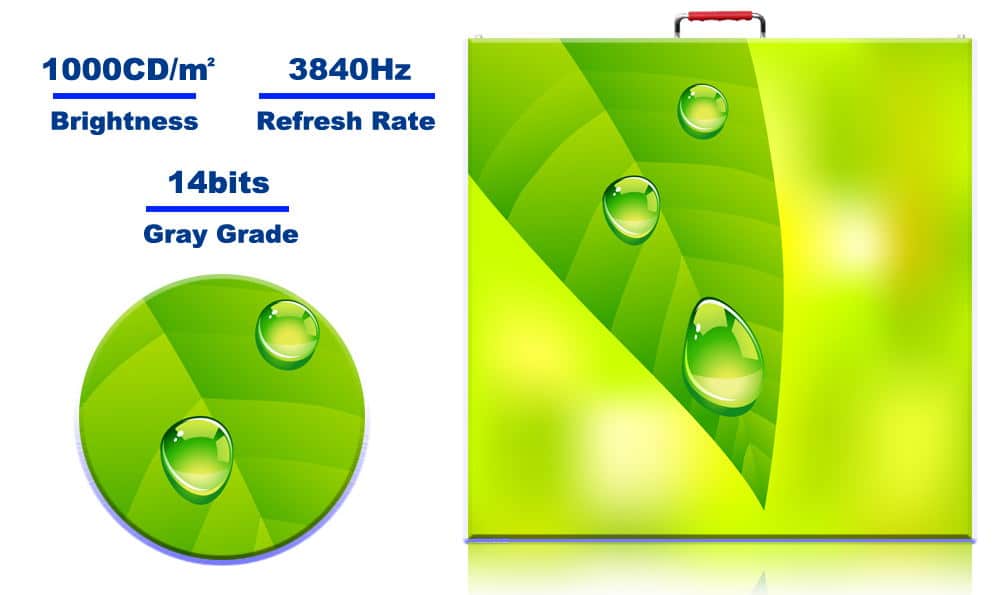

37

High Refresh Rate, High Contrast, High Brightness

Rental LED display has high brightness, high contrast, high refresh rate, high gray scale, LED display with vivid picture, clean video screen and great picture quality.

Corner Prtection For Choose

You can choose to add the corner protection, designed to protect corners in both transit and staging.

576E 04

Geniş Görüş Açısı

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

Kiralık LED Ekran, kabine ön ve arka tasarımla erişilmesini sağlamak için Mıknatıs Adsorpsiyon LED Panelini kullanır. LED paneller için kolay kurulum.

Fast lock, simply rotate the angle lock to quick switch the splicing angle, instelation speed increased by 40%. Tools free for fast maintenance and apply to all kinds of operating environment. Power box supports quick intallation. The cabinet use super slim Die-casting Aluminum, which can protect the unit structure.

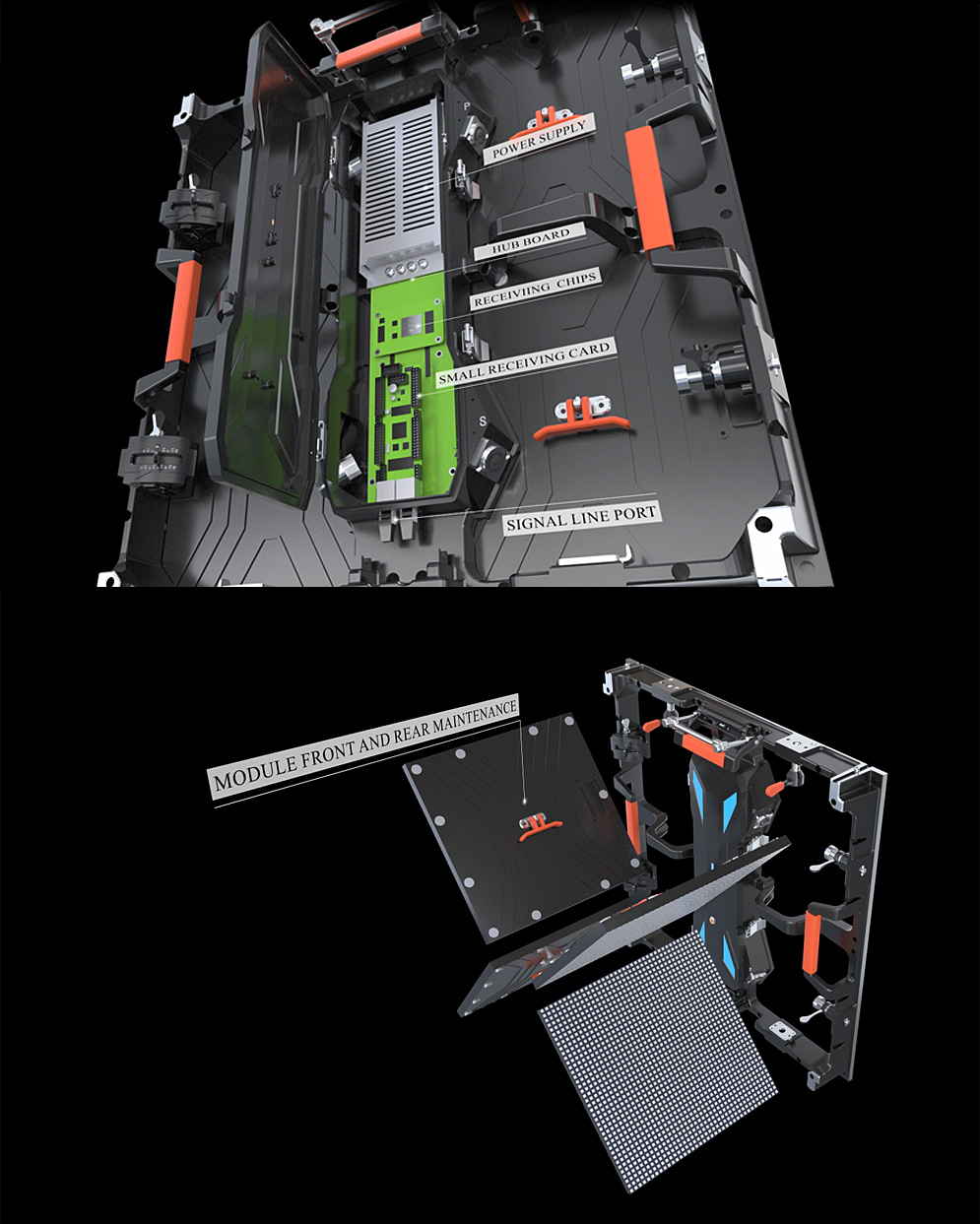

576E 06(1)

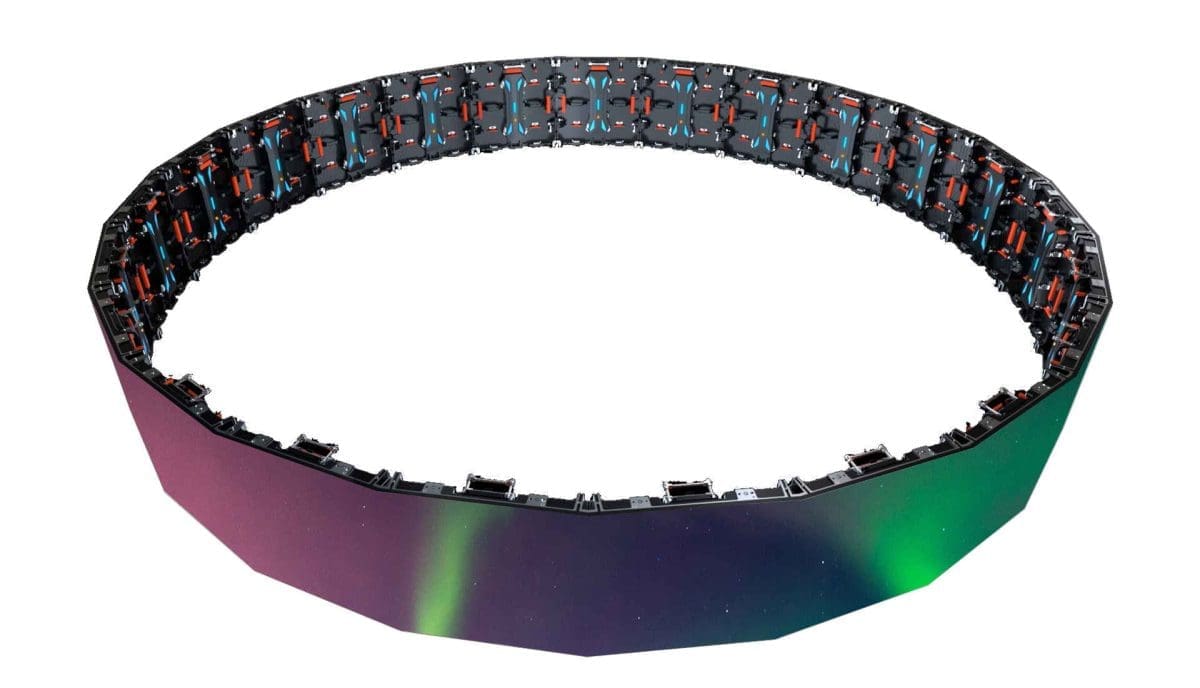

576E 02

Superior Functions

With Curved lock,Outer Arc 10,inner Arc 15.Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.Lightweight Die-Casting Cabinet move easy . It can adapt to different application scenarios. 576E Series can also provide customized LED display solutions for customers according to their needs.

Kolay Kurulum

Yardımcı kurulum yapısı, hızlı bağlantı, tek kişilik kurulum ile donatın

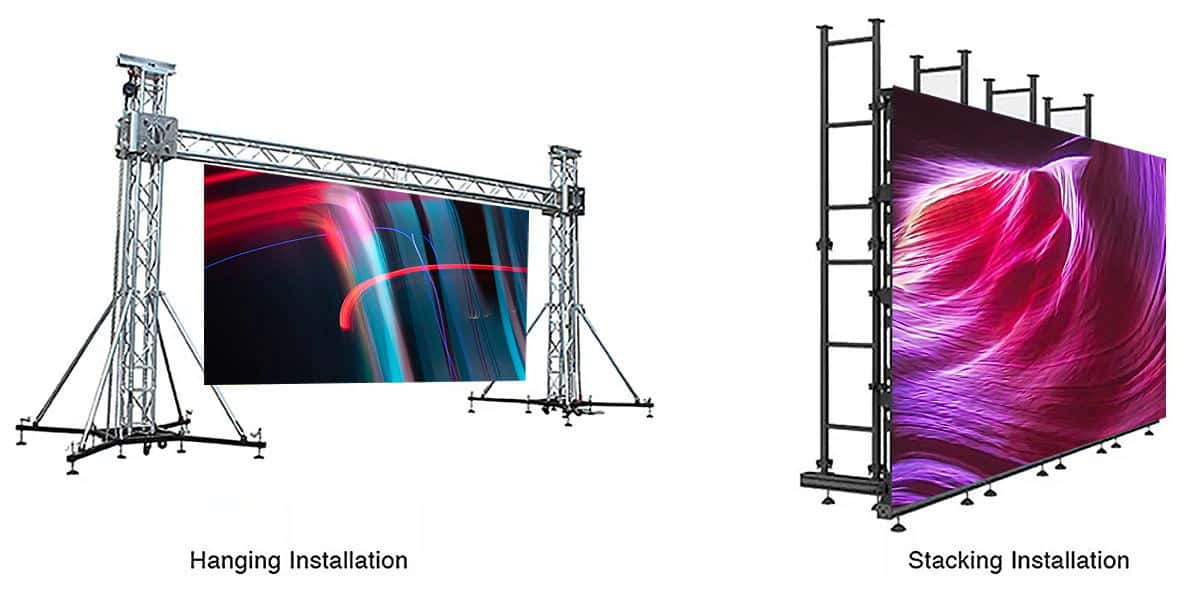

Accessories Optional
Back Brackets are mainly for indoor outdoor stacking installation on wall;
Hanging Bars are ideal for indoor outdoor hanging installation on truss.
Easy Istallation

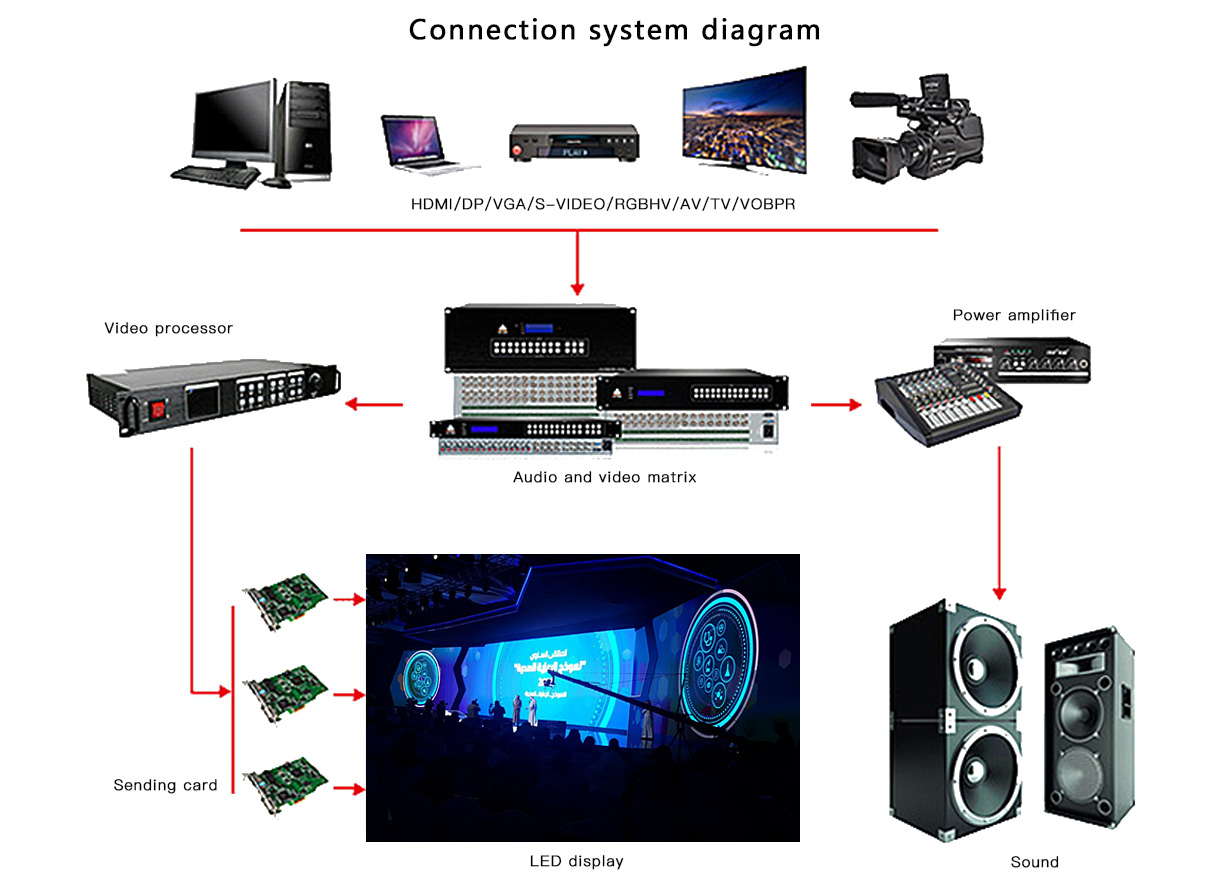

06

LED Giriş Ortamı İşlevini Gösterir

1. DVI arayüzü

DVI arayüzü, yani dijital video arayüzü.

2. VGA arayüzü

VGA arayüzü, VGA standardını kullanan bilgisayar çıktı verileri için özel bir arayüzdür.

3. HDMI arayüzü

HDMI arayüz standardıdır. Tam adı Yüksek Çözünürlüklü Multimedya Arayüzüdür.

4. SDI arayüzü

Kablo standardı olarak BNC arayüzlü koaksiyel kabloyu benimseyin.

5. USB arayüzü

Evrensel seri veriyolu.

6. WIFI işlevi ve bulut

LED ekranın video ve resim içeriğini hesaplama aracılığıyla uzaktan değiştirmek için WIFI işlevi ve bulut

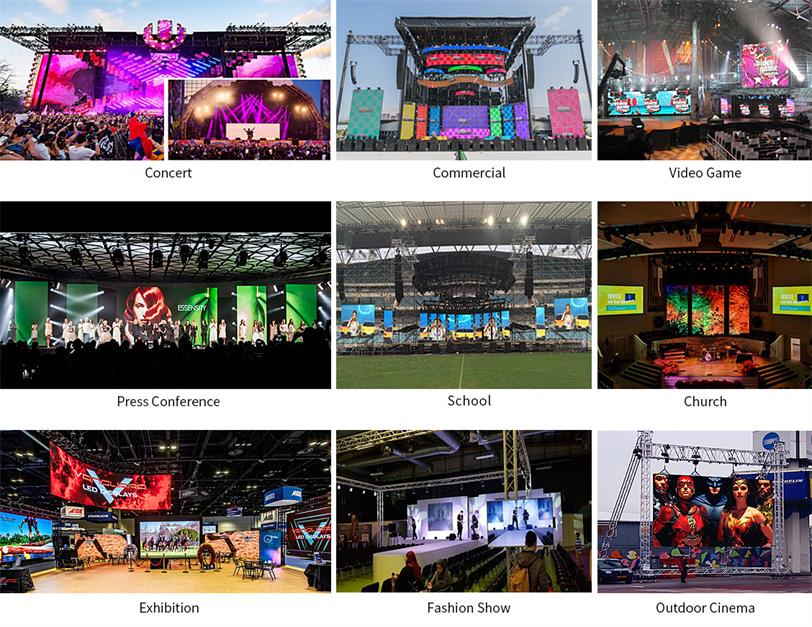

Uygulama Alanları

Widely used in transportation information release at stations, docks, airports, conferences, shopping centers, brands, and advertising signs display; Television, large-scale theatrical performances, live broadcast display of concert images, and other different occasions.

Application 01

Parametreler

Item Model No.

576E

Kabine Boyutu

576*576 mm*68mm

Cabinet weight

4.2kg(Aluminum door)
Suite and Power supply  NOT INCLUDED

Kabin Malzemesi

Aluminum

Cabinet Installation

Girder Hoisting/Ground stacking installation

Maintain Method

Front/Back

Cabinet Color

Navy/Red

Application Scope of Pixel Pitch

P3/P3.79/P4.8/P6

Working Invironment

Indoor and outdoor(-40°~60°)

Standard Accessories
NOT INCLUDED

1 door
1 Handle, Can be grasped on 3 sides
2 Positioning Pins
1 electrical installation board
2 connection pieces
4 quick locks

Suites Quan.
NOT INCLUDED

4 pcs of 288mm×288mm modules/Cabinet
