Rental LED Display

Ultra-lightweight and space saving, with a number of core technologies. Innovative structural design,avant-garde body lines, Seamless Display and Visual Effects

500X1000mm die- casting aluminum cabinet 2.604 2.976mm 3.91 4.81 pixel pitch for options 500x1000mm front open / front maintenance / front repair / front serving / front access led display for events and stages IP67 outdoor led module Magnetic suction led module support both rear and front maintenance Smart…

Cable Free Design.
Die-casting Aluminum Cabinet.
500x500mm and 500x1000mm Cabinet Could Work Together.
Easy Assemble and Disassemble.
Light Weight and Quick Lock Design.
Flight Case Package.

1000H Series

1000H is a robust 500 x 500mm / 500 x 1000mm LED Display panel that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

1000H is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

%name 1000H

CHENKSE LED Dipalys

Ordinary LED displays

High refresh

%name 1000H

CHENKSE LED Dipalys

Ordinary LED displays

High contrast

%name 1000H

CHENKSE LED Dipalys

Ordinary LED displays

%name 1000H

It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets. Seamless connection. The cabinet is die-casted by high precision CNC machine, when we set up the panels for a big screen, there will be no gaps between two contiguous panels.

Excellent Protection Gadgets

The panel has bottom module protection design. There are two anti-collision pins at the bottom of the panel to raise the bottom module up by 3mm and prevent it from crashing if the panel hits the floor. Meanwhile, it also has strong and safety locking system.We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.

%name 1000H
%name 1000H

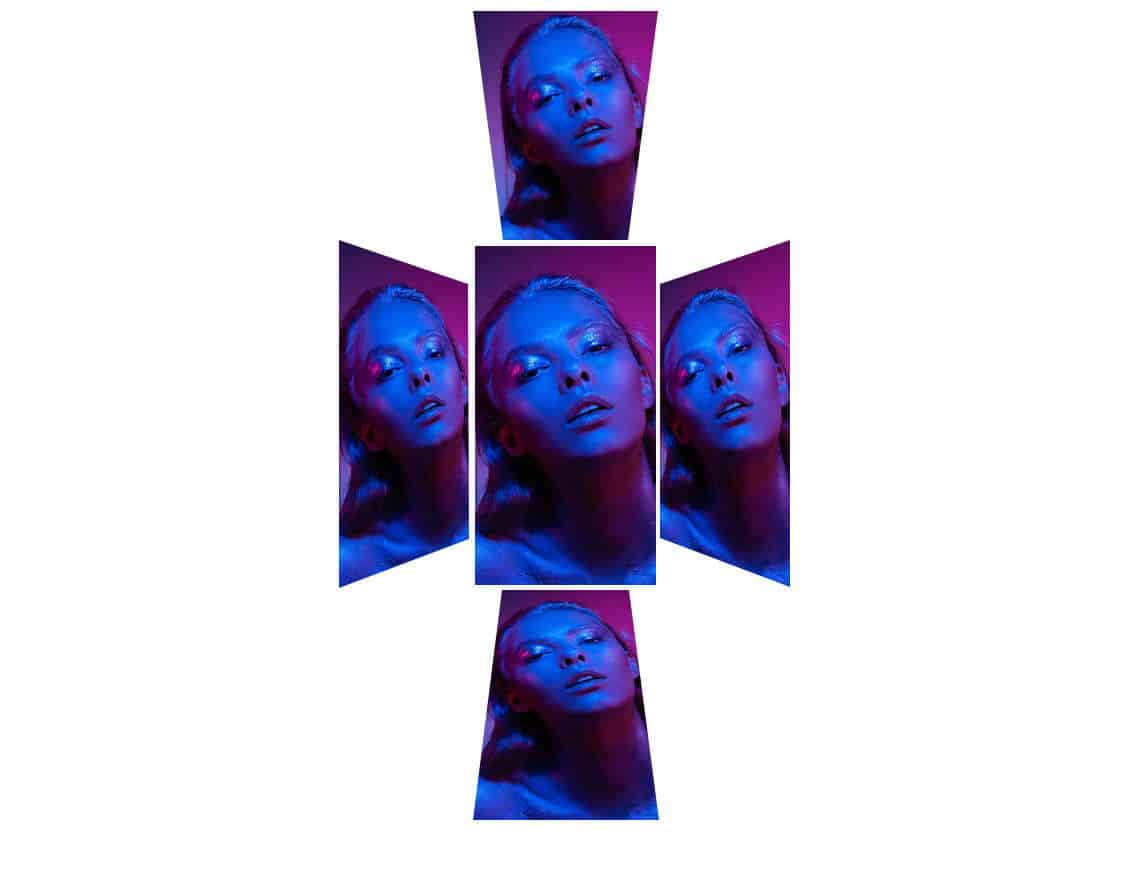

Wide Viewing Angle

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

Light, Thin and Strong

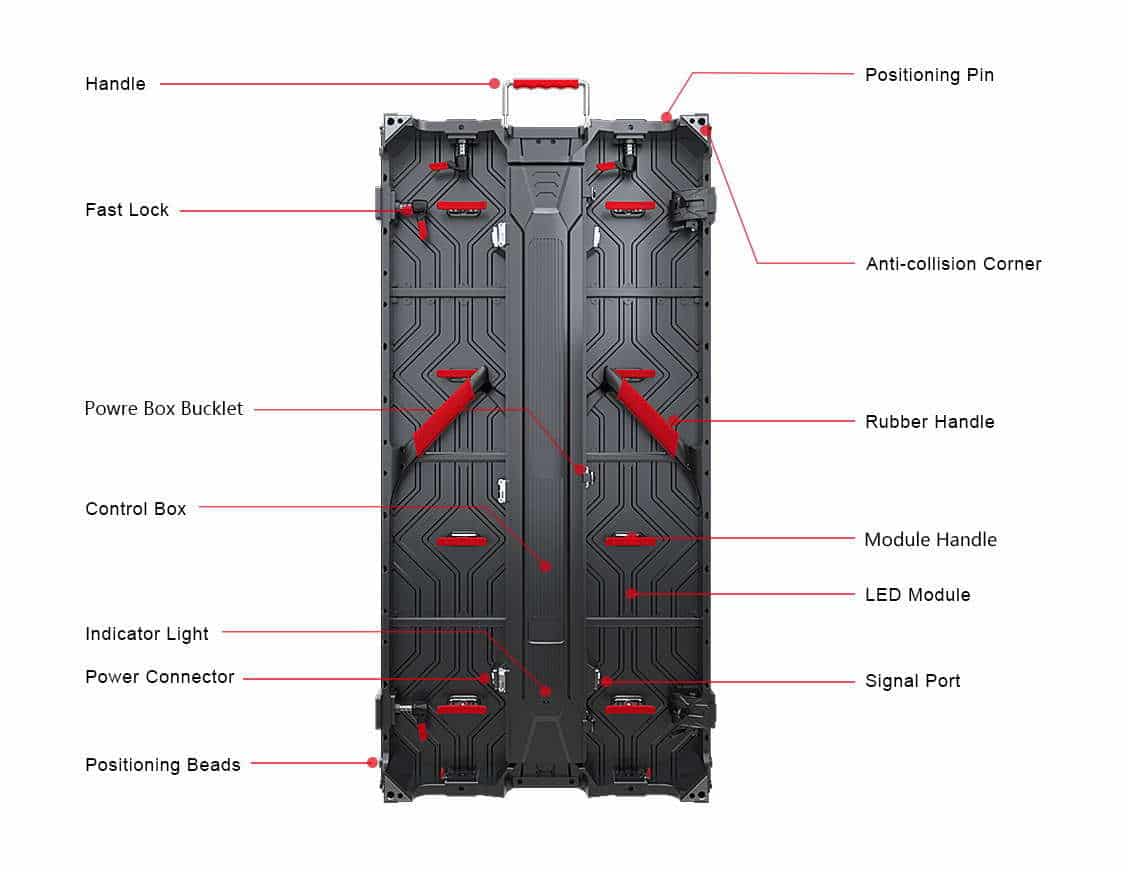

1000H Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

%name 1000H
%name 1000H

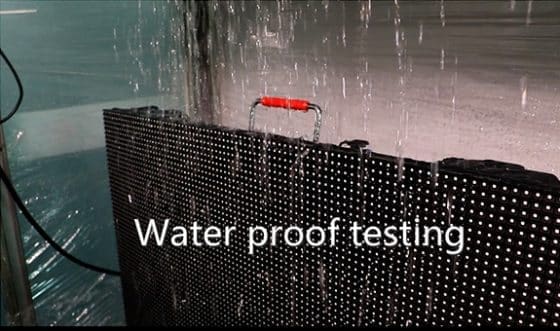

IP65 - Safe And Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

Ultra Lighweight, Slim Design

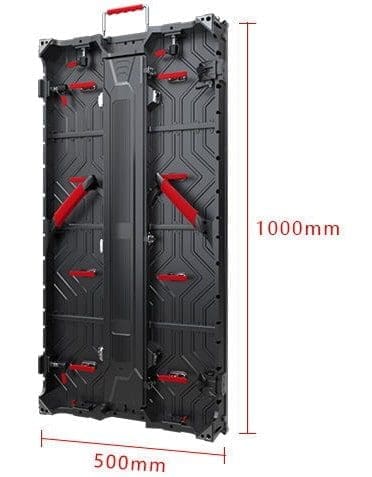

500*1000mm standard cabinet size. Ultra-Light die-casting aluminum. ultra-thin thickness with 74mm. For easy transport and Portable;

%name 1000H
49 3 1000H

Dual Service Design

Module features

Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.
Double side locks design, make the screen build easily and keep perfect flatness;

The fast locks ensure the cabinet joint within 8 seconds;

Seamless precision die casting panel;

Handle friendly, easily lift up.

Full front service

Support full front access, it is convenient for future possible maintenance.

Very suitable for those projects which do not have the back-maintenance channel and stage events.

Easy Maintenance

Front access or back access design is used in this panel. The module’s slim shape makes it even much easier to maintain.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Curved Screen & Seamless Splicing

The cabinet equips high-precision angle lock, available to splice flat screen and curved screen

%name 1000H
%name 1000H

LED Displays Input Media Function

1. DVI interface

DVI interface, namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is High-Definition Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Application Fields

Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.

%name 1000H

Parameters

Pixel pitch2.604mm2.976mm3.91mm4.81mm
Pixels per cabinet192×384 (HxV)168×336 (HxV)128×256 (HxV)104×208 (HxV)
LED lifetime100,000h (video – 50% brightness)
Brightness≥1000 nits;
Module size250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Refresh rate1920Hz~3840Hz
Hor. viewing angle140° +/-5° (@50% brightness)
Vert. viewing angle140° +/-5° (@50% brightness)
Brightness uniformity>98%
Dimming0-100%
Grey Level14 bits
Avg Power consumption350 W/m²320 W/m²300 W/m²280 W/m²
Max Power consumption680 W/m²640 W/m²620 W/m²600 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP33 for Indoor, IP65 for Outdoor
Dimensions500 x 1000 x 74 mm (WxHxD)/ 19.6 x 39.2 x 2.9 inch (WxHxD)
Weight / Tile13 kg / 28.66 lbs
ServiceabilityFront and back service
CertificationsCE, UL, FCC class A, RoHS, WEE, REACH
Warranty5 years standard product warranty
