Stage Rental LED Video Wall for All Events
Stage rental led video wall is still the important part of event devices. Usually events planner will require the led video wall being installed fast with more possibility of different design. So, it comes out with this 1000K stage led video wall, which supports convex or concave install, and flying install or floor-standing install.
Stage building requires higher standard than ever . Flying bars and floor-standing truss are the important gadgets . But , having more possibility in sizes are challenging the design of LED screen cabinet . 1000K stage LED screen are designed for professional events . Because it has two types of cabinet design , and they can be installed together vertically or horizontally for different sizes requirement
1000K Series
1000K is a robust 500 x 500/ 500 x 1000mm LED Display panel that is designed for the high demands of the touring production world.
Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.
1000K is the premier rental staging product on the market.
Great gray scale, high refresh rate and excellent white balance
Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.
Angle adjustable
Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
Test aging
All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Convenient Maintenance
Available to operate the module and power box separately
Low gray
CHENKSE LED Dipalys
Ordinary LED displays
High refresh
CHENKSE LED Dipalys
Ordinary LED displays
High contrast
CHENKSE LED Dipalys
Ordinary LED displays

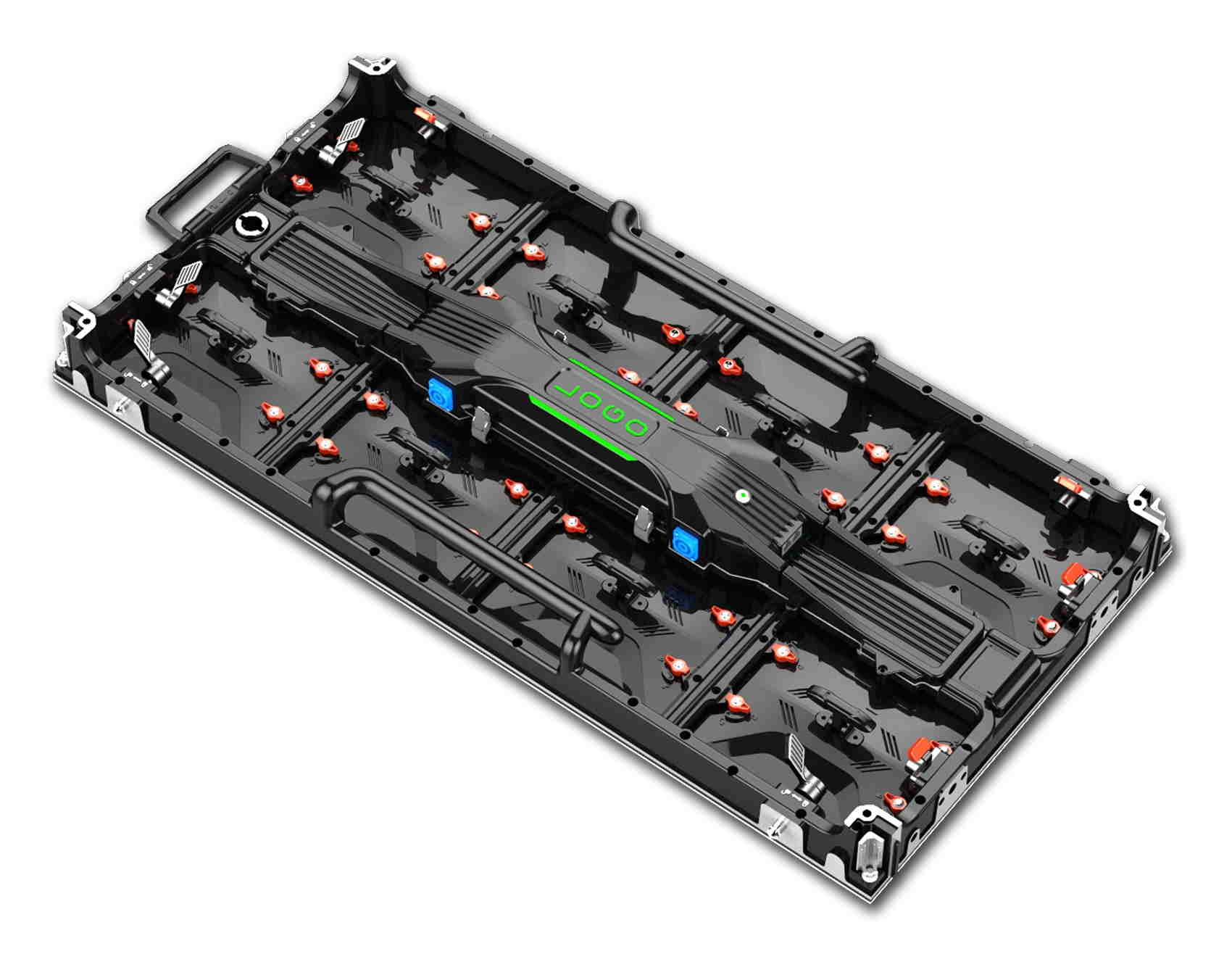

Die Casting Aluminum Cabinet Design

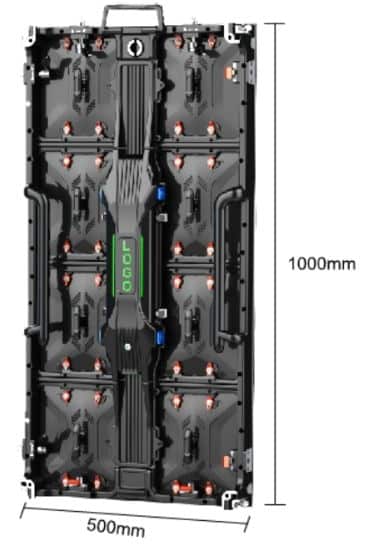

500*1000mm standard cabinet size. Ultra-Light die-casting aluminum. ultra-thin thickness with 76.5mm. For easy transport and Portable;
The cabinet is made of aluminum alloy, which is light, strong and durable, and has high stability outer frame.
The fine pitch 1.9mm,2 604mm,2.97mm,3.91 and 4.81mm was launched due to the needs of the HD, 4K high resolution, which is fast, easy and safe for hanging & stacking installation for different LED visual applications.

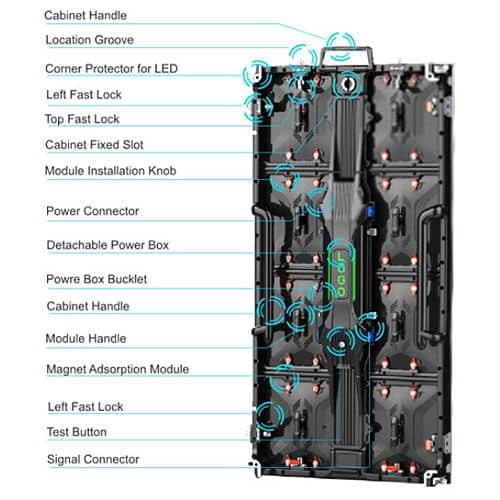

Perfect Cabinet Design With Each Part
1000K Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more
Wide Viewing Angle
The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

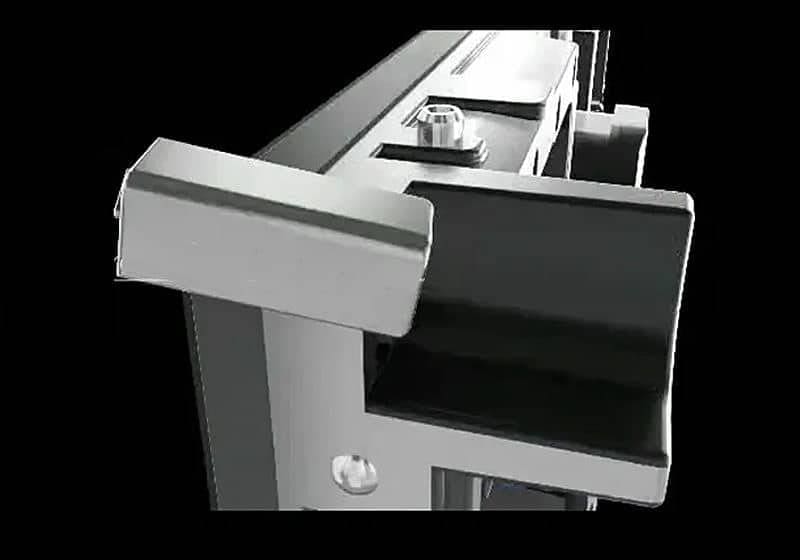

Excellent Protection Gadgets
Special corner protection design,it’s can protect the lamps from damaged
500*1000mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

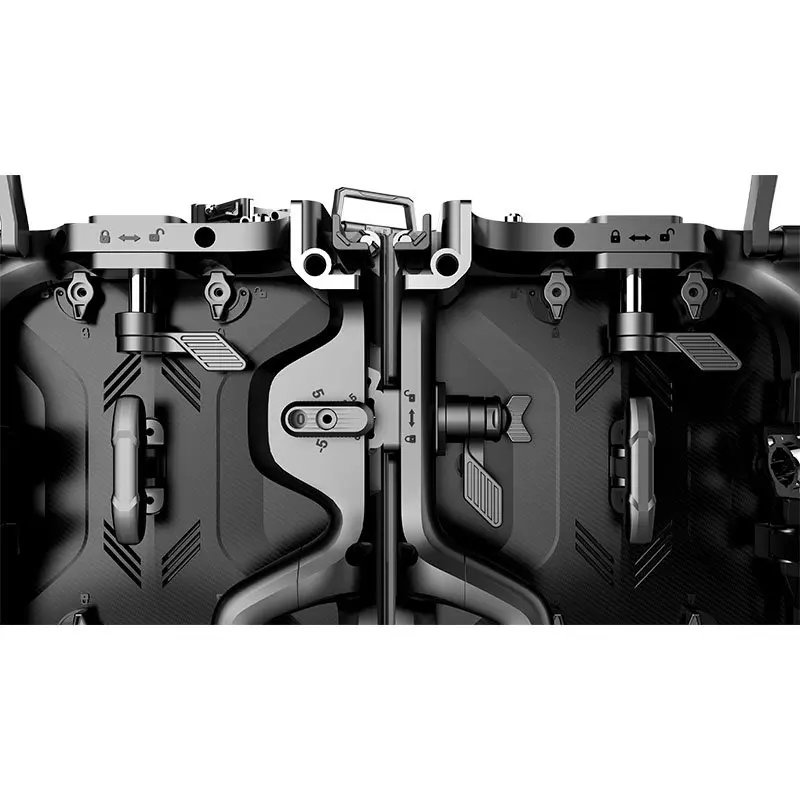

Renewed angle adjustment lock system
Rotary lock system with inner and outer arc from 0°, ±2.5°, ±5°, with flexible application.
Flexible Rental LED Screen Creative curvable design
Seamless alignment installation
Handy & fast curve locking system
+-2.5 degree curve installation

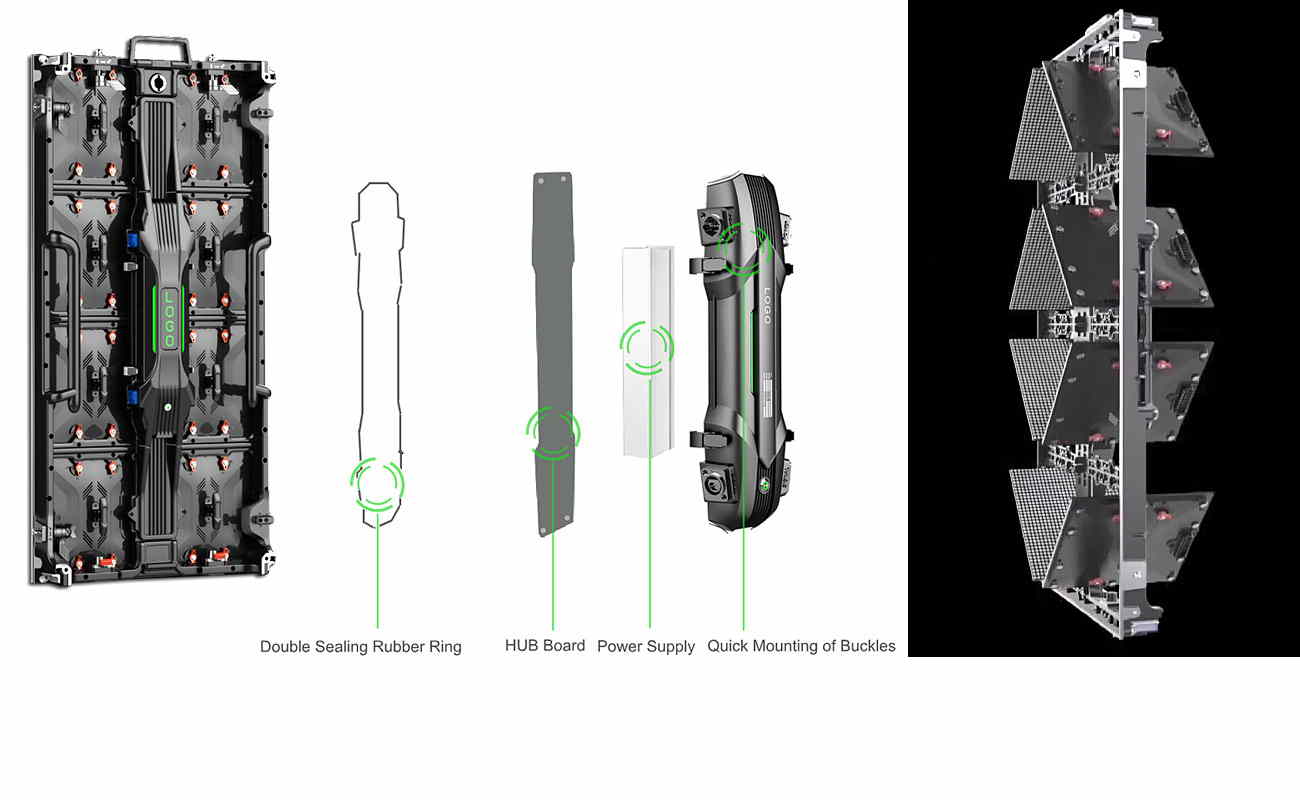

Easy Maintenance
Front access or back access design is used in this panel. The module’s slim shape makes it even much easier to maintain.
Dual Service Design
Module features
Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.
Double side locks design, make the screen build easily and keep perfect flatness;
The fast locks ensure the cabinet joint within 8 seconds;
Seamless precision die casting panel;
Handle friendly, easily lift up.
Full front service
Support full front access, it is convenient for future possible maintenance.
Very suitable for those projects which do not have the back-maintenance channel and stage events.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Curved Screen & Seamless Splicing
The cabinet equips high-precision angle lock, available to splice flat screen and curved screen
LED Displays Input Media Function
1. DVI interface
DVI interface, namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is High-Definition Multimedia Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute
Application Fields
Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.
Parameters
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 1920Hz~3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP33 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 1000 x 76.5 mm (WxHxD)/ 19.6 x 39.2 x 3 inch (WxHxD) | |||
| Weight / Tile | 13 kg / 28.66 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 5 years standard product warranty | |||
