45 Degree Angle Rental LED Display
2.604 2.976mm 3.91 4.81 Indoor Outdoor Stage rental LED display /Screen With Light Weight Die-Casting Aluminum Cabinet For Events And Stages
The is a 45-degree oblique edge LED screen, which can make a 90-degree angle screen.
It has two quick locking devices on the left and right sides, which can guarantee faster assembly speed and better screen flatness.
45 Degree Angle
45 Degree Angle is a robust 500 x 500mm LED Display panel that is designed for the high demands of the touring production world.
Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.
45 Degree Angle is the premier rental staging product on the market.
Great gray scale, high refresh rate and excellent white balance
Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.
Angle adjustable
Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
Test aging
All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Convenient Maintenance
Available to operate the module and power box separately
Low gray
CHENKSE LED Dipalys
Ordinary LED displays
High refresh
CHENKSE LED Dipalys
Ordinary LED displays
High contrast
CHENKSE LED Dipalys
Ordinary LED displays
Bevel Edge LED Display 90° Right Angle Rental LED screen is High refresh rate, high contrast ratio, no ghosting. High surface flatness, excellent visual quality and zero-gap alignment to ensure the LED display offer surper better color uniformity, clean and no ghosting image, video and advertising content with many types.

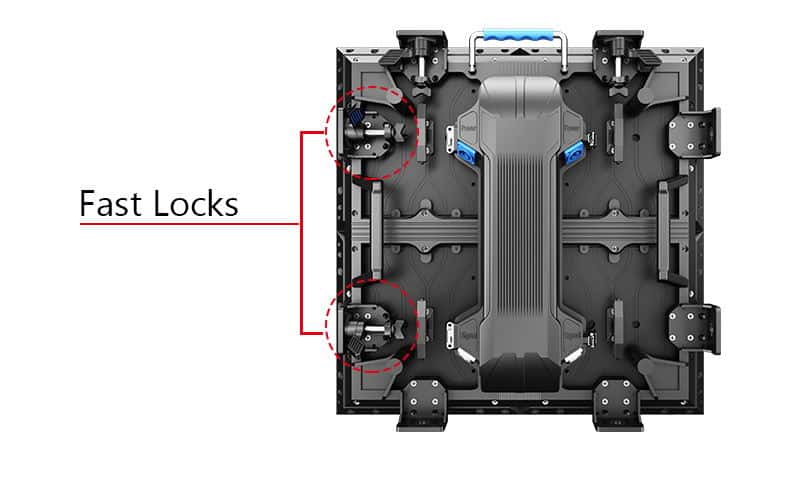

Quick Install
LED screen Two Fast Locks on Left and Right Side, Ensure faster assembly and better screen flatness.
Wide Viewing Angle
The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

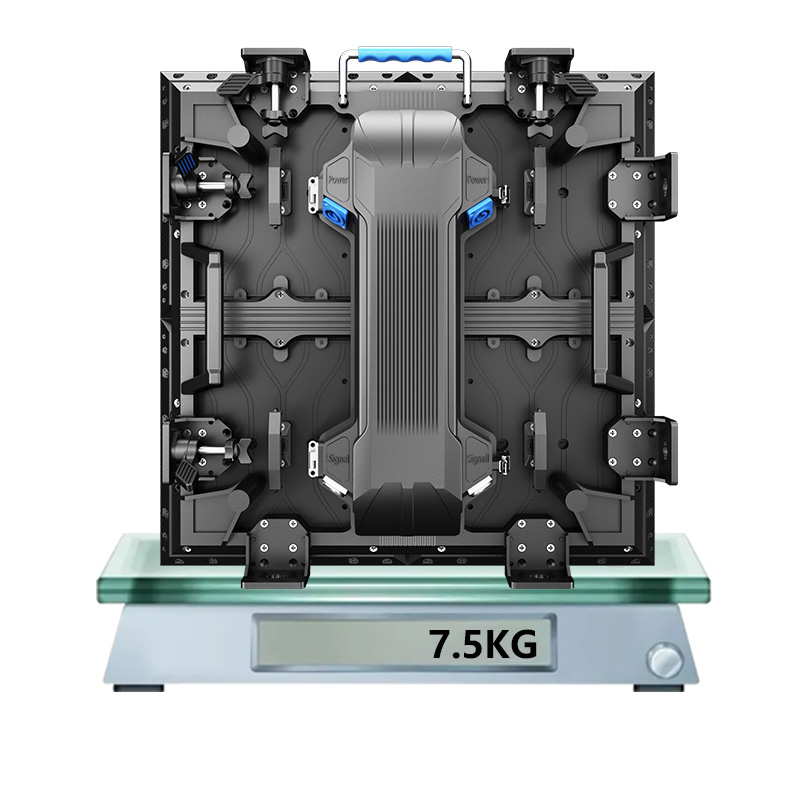

Lightweight and Thin
LED display cabinet weighs 7.5KG/pc, easy to operate: one person to install, disassemble and maintain.

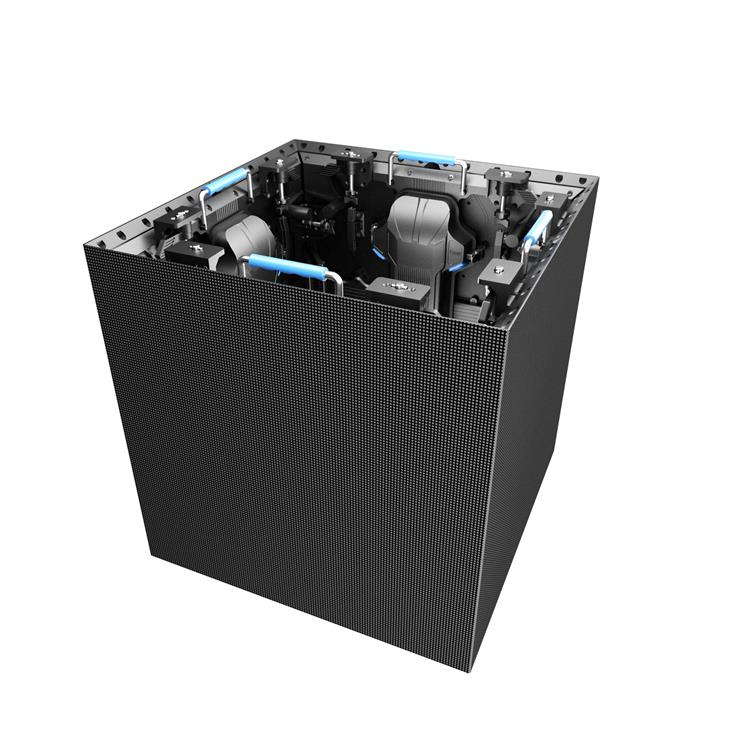

Splicing Cube LED Display
Used for LED displays that require a right angle of 90 degrees, such as cube screens.

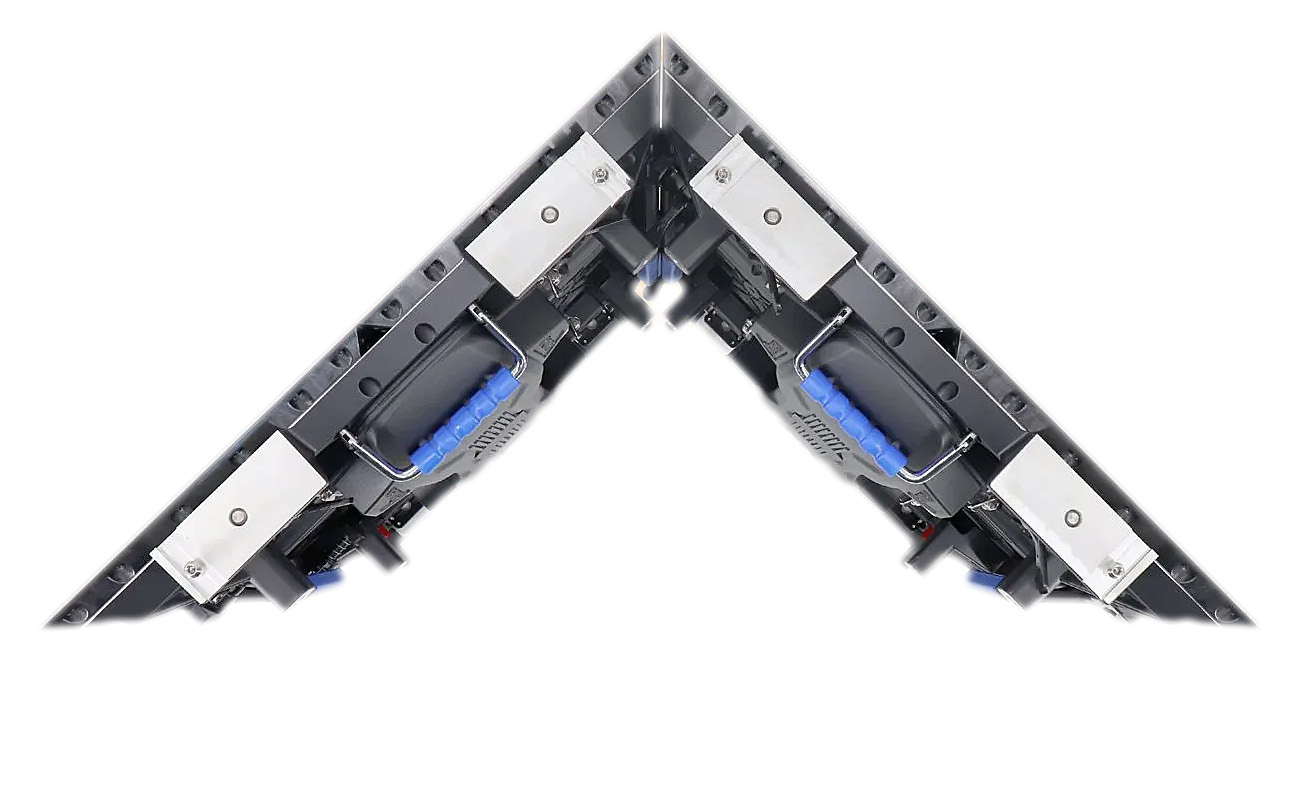

90 Degree Corner Splicing Installation
The two cabinets are directly assembled at a 90-degree angle, which is easy to achieve seamless splicing and high flatness.

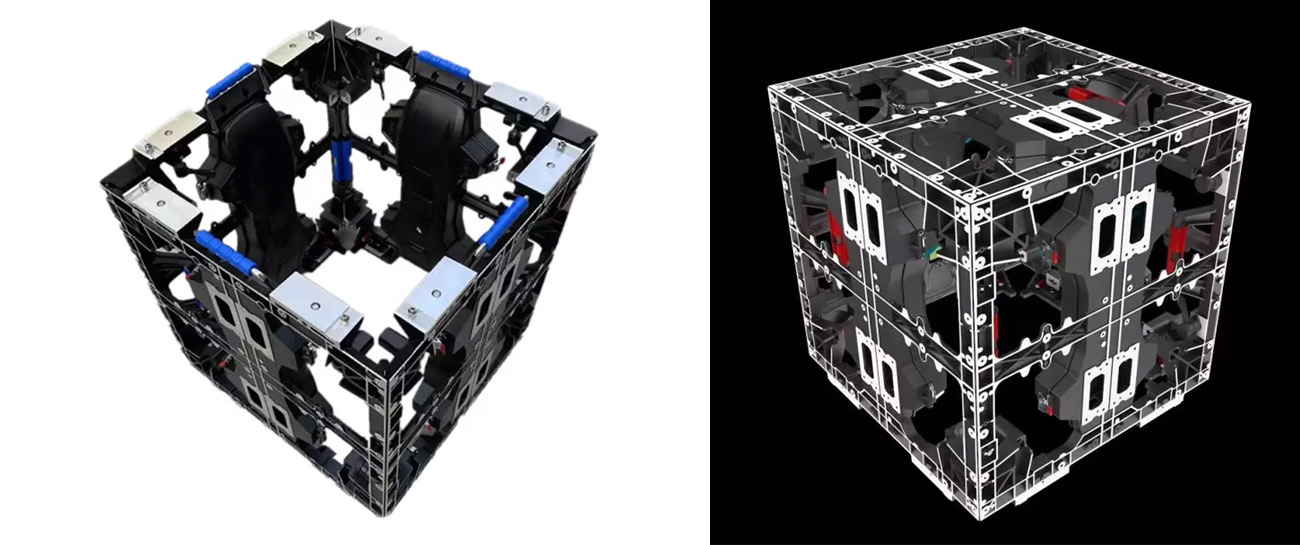

Four panl structures
For more right-angle splicing projects
500x500mm Right angle Rental LED Display
The 90 Degree Right Angle LED Display is a 45-degree oblique edge LED screen, which can make a 90-degree angle screen. lt has two quick locking devices on the left and right sides, which can guarantee faster assembly speed and better screen flatness.

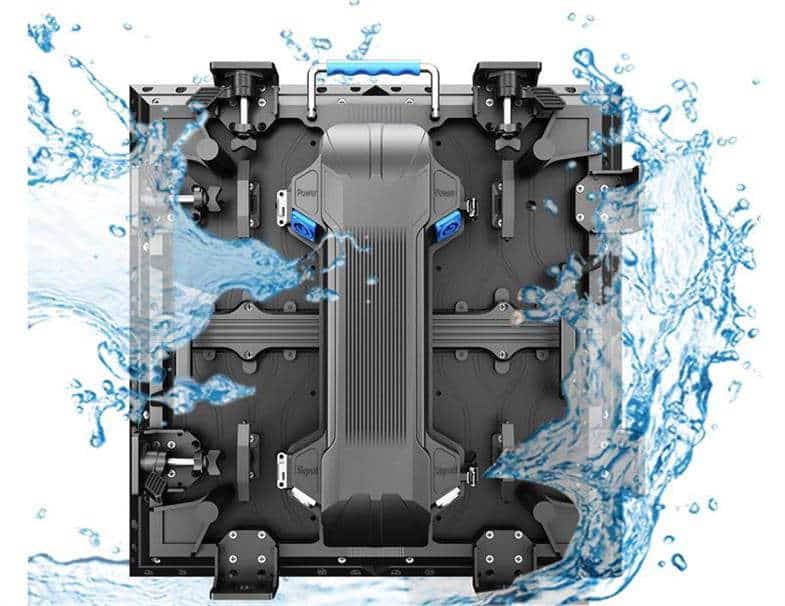

IP65 Dustproof And Waterproof
The outdoor LED display supports IP65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

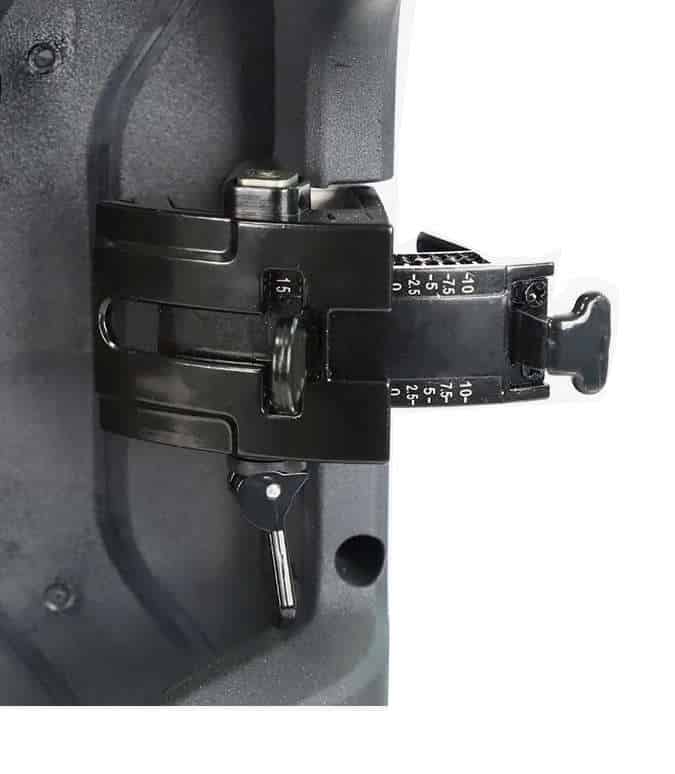

High Precision Curve Lock
High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.
Column Installation
Fixed and rental led display
For more column design in stage, shopping mall, enterprise, etc.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Curved Screen & Seamless Splicing
The cabinet equips high-precision angle lock, available to splice flat screen and curved screen
LED Displays Input Media Function
1. DVI interface
DVI interface, namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is High-Definition Multimedia Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

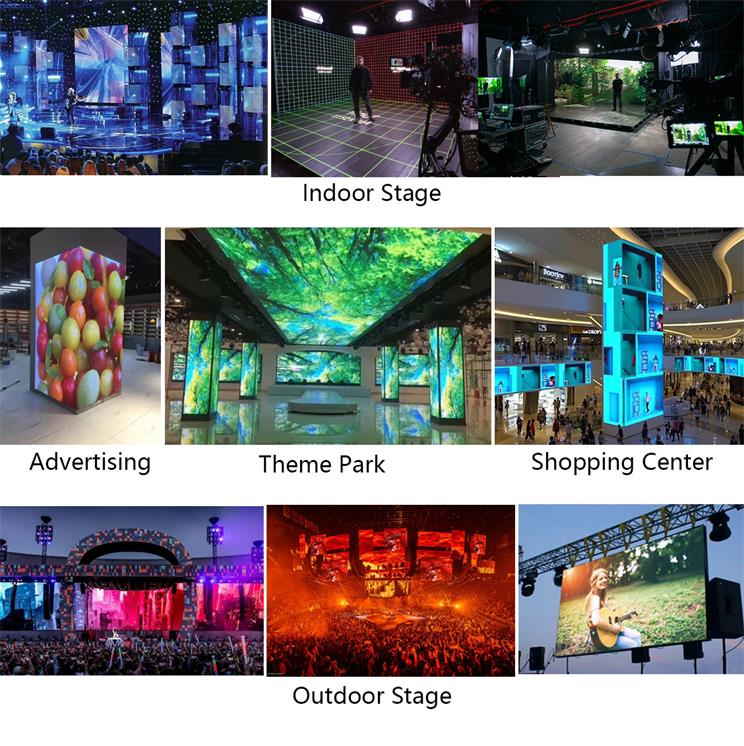

Application Fields
Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.
Outdoor 500x500mm Rental LED Display Parameter
45 Degree Angle | ||
|---|---|---|
| Pixel Pitch (mm) | P3.91 | P4.81 |
| Model | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 65,536 | 43,264 |
| Module Resolution (Pixel) | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 |
| Brightness (CD/㎡) | ≥6,000 | ≥6,000 |
| Viewing Angle (°) | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x500mm Rental LED Display Parameter
| Pixel Pitch (mm) | P1.95 | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|
| Model | 1.95mm | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2020 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | ≥1000 | ≥1200 | ≥1,000 | ≥1,200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
