Stage Background LED Screen

500PRO+ series rental LED displays have good heat dissipation, high brightness, low power consumption, simple appearance and ultra-thin and ultra-light cabinet. The products have different dustproof rates. Magnetic modular design is easy for installation and field maintenance. Seamless connection and precise modules get a smooth viewing experience. High modularization design is convenient to repair.

How to choose the right led display for your event? Not only does it meet the requirement of easy installation and better alignment, but also it is affordable to you. This Pro rental led display is totally the product to this purpose, which is the right solution for all kinds of events. No matter you want led wall for the church preach, or you want the led video display for the musical touring.

500PRO+ Series

500PRO+ is a robust 500 x 500/ 500 x 1000mm LED Display panel that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

500PRO+ is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

Low gray led display

CHENKSE LED Dipalys

Ordinary LED displays

High refresh

High refresh LED Display

CHENKSE LED Dipalys

Ordinary LED displays

High contrast

chenkse led2

CHENKSE LED Dipalys

Ordinary LED displays

29

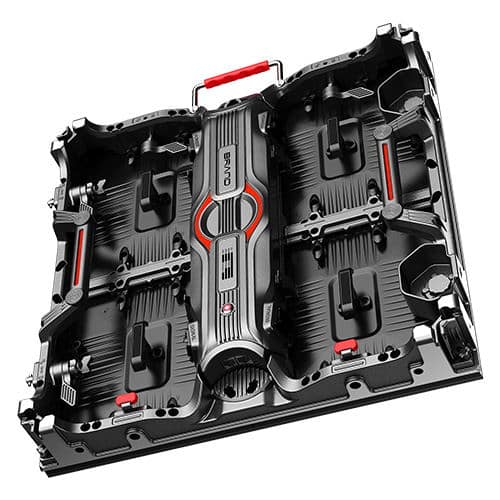

Die Casting Aluminum Cabinet Design

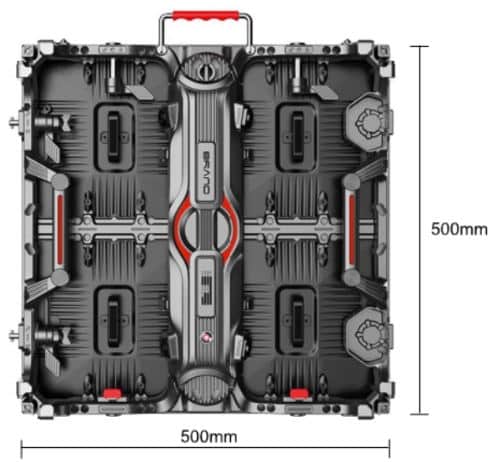

500*500mm standard cabinet size. Ultra-Light die-casting aluminum. ultra-thin thickness with 71mm. For easy transport and Portable;

The cabinet is made of aluminum alloy, which is light, strong and durable, and has high stability outer frame.

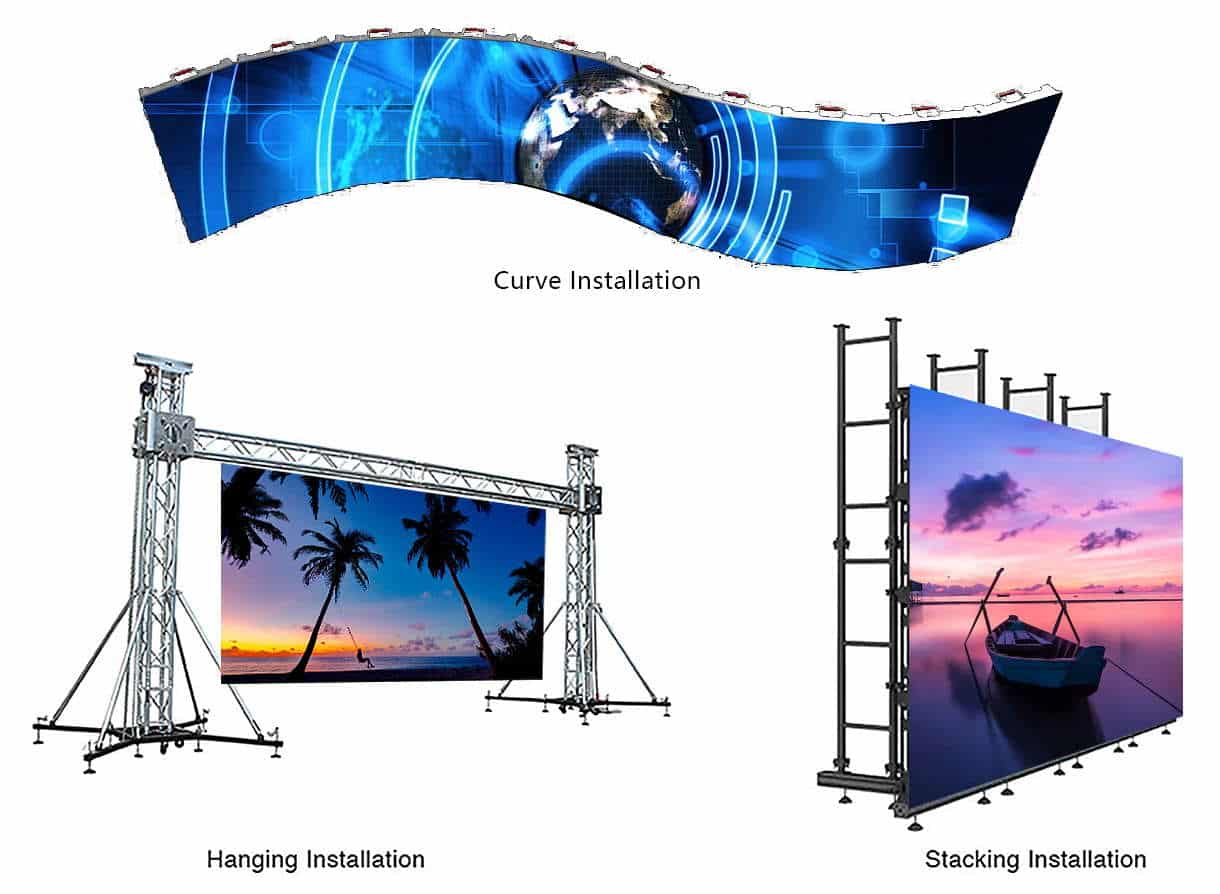

The fine pitch 1.9mm,2 604mm,2.97mm,3.91 and 4.81mm was launched due to the needs of the HD, 4K high resolution, which is fast, easy and safe for hanging & stacking installation for different LED visual applications.

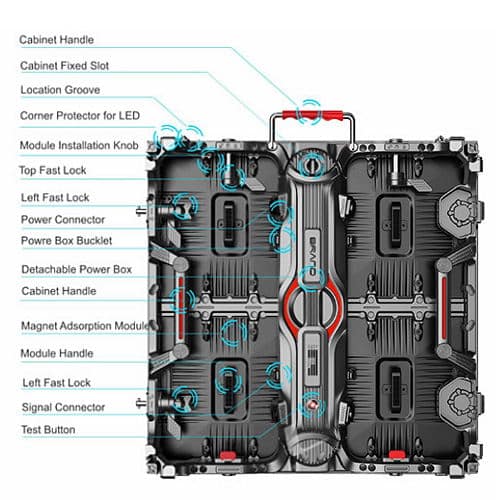

Perfect Cabinet Design With Each Part

500PRO+ Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

25

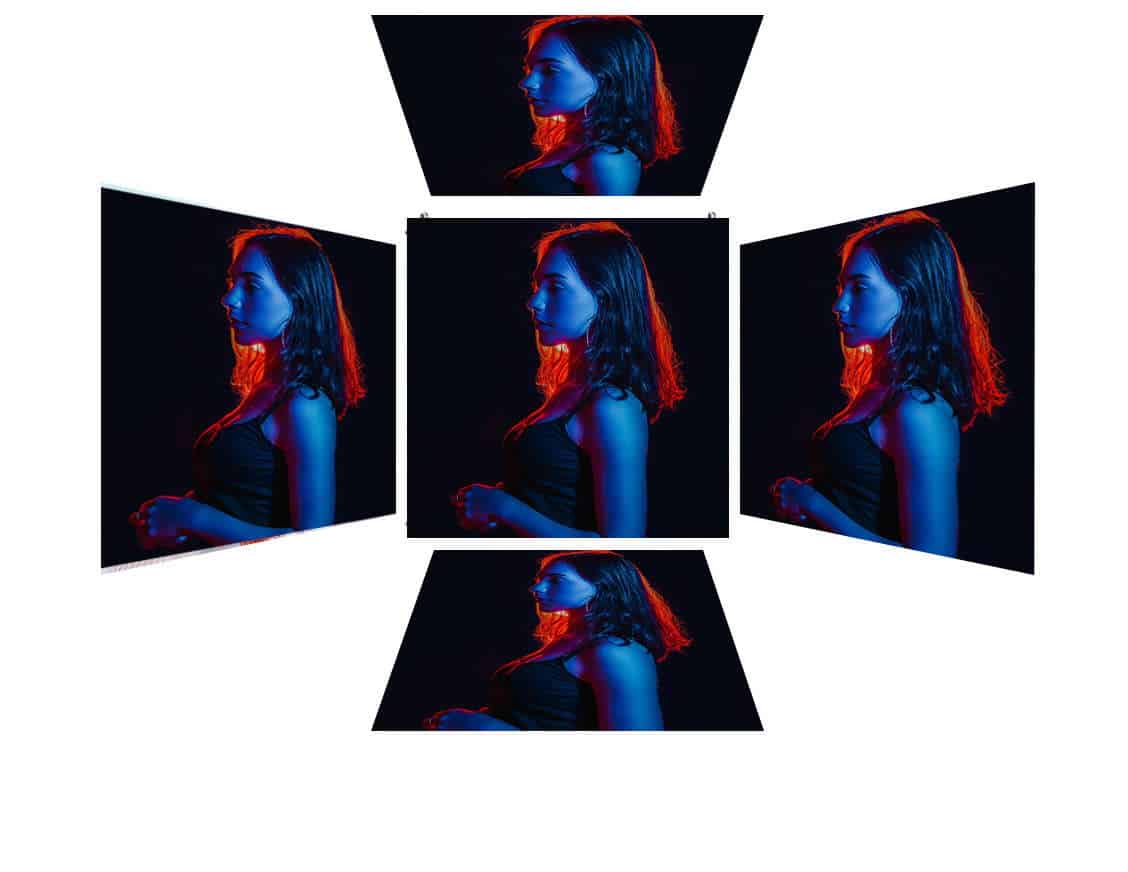

Wide Viewing Angle

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

Excellent Protection Gadgets

Special corner protection design,it’s can protect the lamps from damaged

28

500*500mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

IP65 Outdoor Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

27

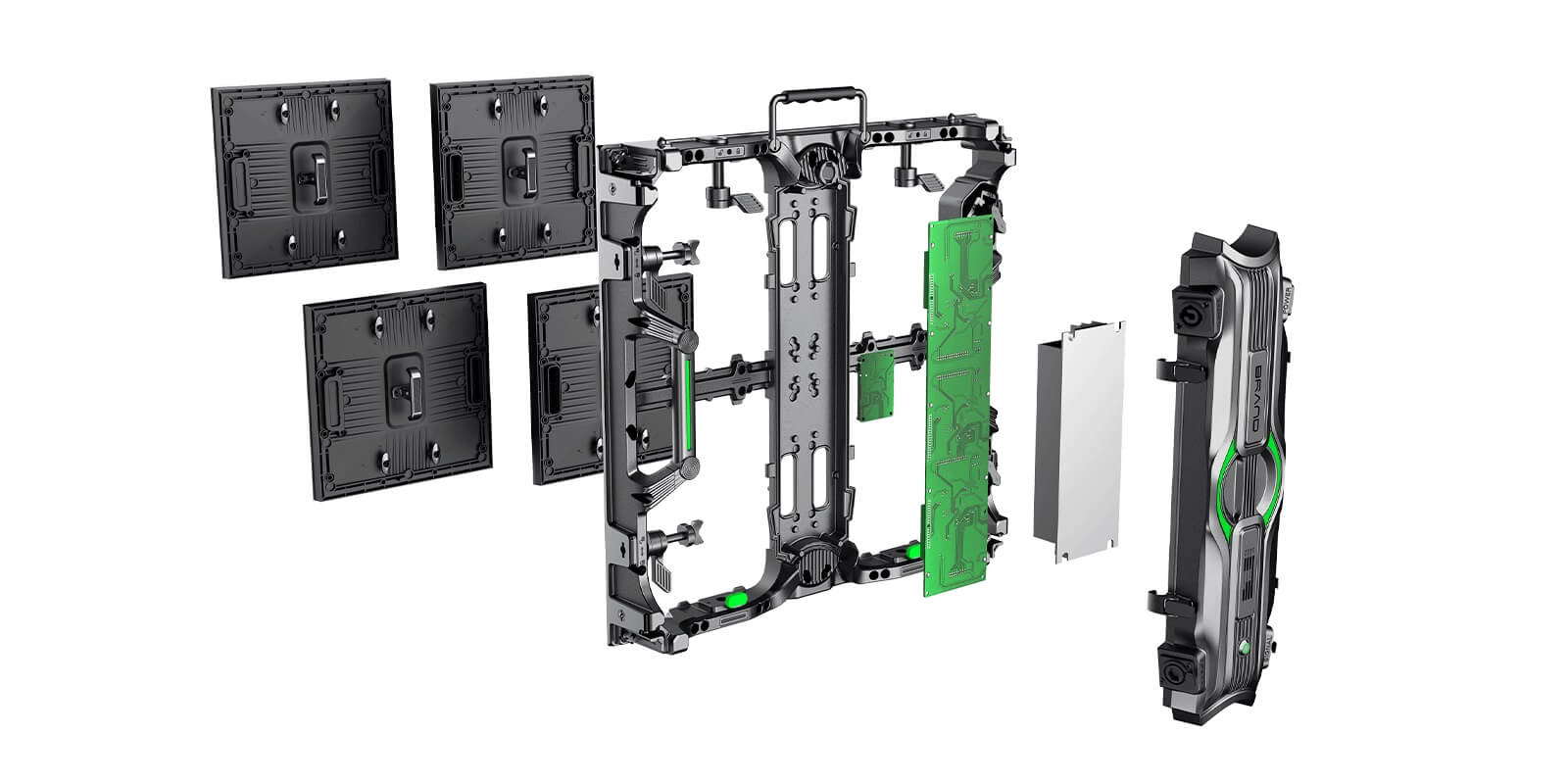

Easy Maintenance & Repairment

Front access or back access design is used in this panel. The module’s slim shape makes it even much easier to maintain. The receiving card, power supply, and hub card are built in a control box in the back of the cabinet. If there is any problem with the LED panel, you can check the whole control box in a short time.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Curved Screen & Seamless Splicing

The cabinet equips high-precision angle lock, available to splice flat screen and curved screen

06

LED Displays Input Media Function

1. DVI interface

DVI interface, namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is High-Definition Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Application Fields

Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.

Application 02

Parameters

Pixel pitch2.604mm2.976mm3.91mm4.81mm
Pixels per cabinet192×192 (HxV)168×168 (HxV)128×128 (HxV)104×104 (HxV)
LED lifetime100,000h (video – 50% brightness)
Brightness≥1000 nits;
Module size250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Refresh rate1920Hz~3840Hz
Hor. viewing angle140° +/-5° (@50% brightness)
Vert. viewing angle140° +/-5° (@50% brightness)
Brightness uniformity>98%
Dimming0-100%
Grey Level14 bits
Avg Power consumption350 W/m²320 W/m²300 W/m²280 W/m²
Max Power consumption680 W/m²640 W/m²620 W/m²600 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP33 for Indoor, IP65 for Outdoor
Dimensions500 x 500 x 71 mm (WxHxD)/ 19.6 x 19.6 x 2.8 inch (WxHxD)
Weight / Tile7.5 kg / 16.53 lbs
ServiceabilityFront and back service
CertificationsCE, UL, FCC class A, RoHS, WEE, REACH
Warranty5 years standard product warranty
