Lightweight die-cast aluminum led cabinet panel

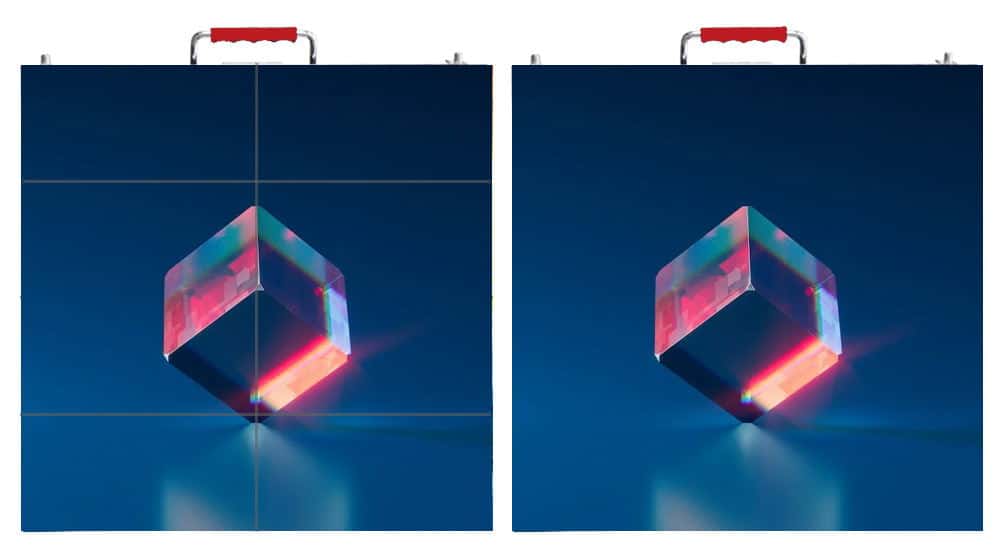

Seamless splicing to large screen display
Simple operation and easy installation
Medium sized, quick to assemble and light weight aluminum cabins, perfect for seasonal displays for easy portability.
Indoor/Outdoor 640x640 Rental LED Display
1.Unique Design – Easy to Install & Transport
LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It’s damage free and lasts for a lifetime.
2.Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.

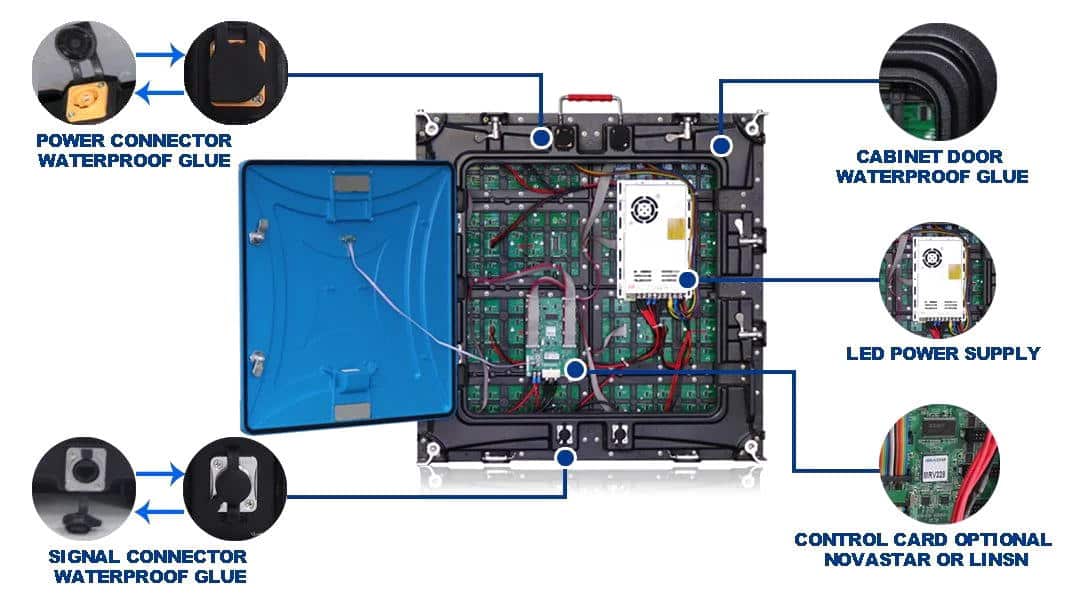

Multiple minimum unit LED module to build up a LED cabinet panel, the led cabinet panel will includes the power supply system and the receiving card of the control system.
Detailed Images
Video panel LED die-cast aluminum cabinet
LED panel size: 640x640mm (25.20 inches x 25.20 inches)
Resolution: 128x128dots
8pcs led modules make up a led cabinet panel
640A Series
640A is a robust 640 x 640mm LED Display panel that is designed for the high demands of the touring production world.
Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.
640A is the premier rental staging product on the market.
Great gray scale, high refresh rate and excellent white balance
Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.
Angle adjustable
Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
Test aging
All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Convenient Maintenance
Available to operate the module and power box separately
Low gray
CHENKSE LED Dipalys
Ordinary LED displays
High refresh
CHENKSE LED Dipalys
Ordinary LED displays
High contrast
CHENKSE LED Dipalys
Ordinary LED displays

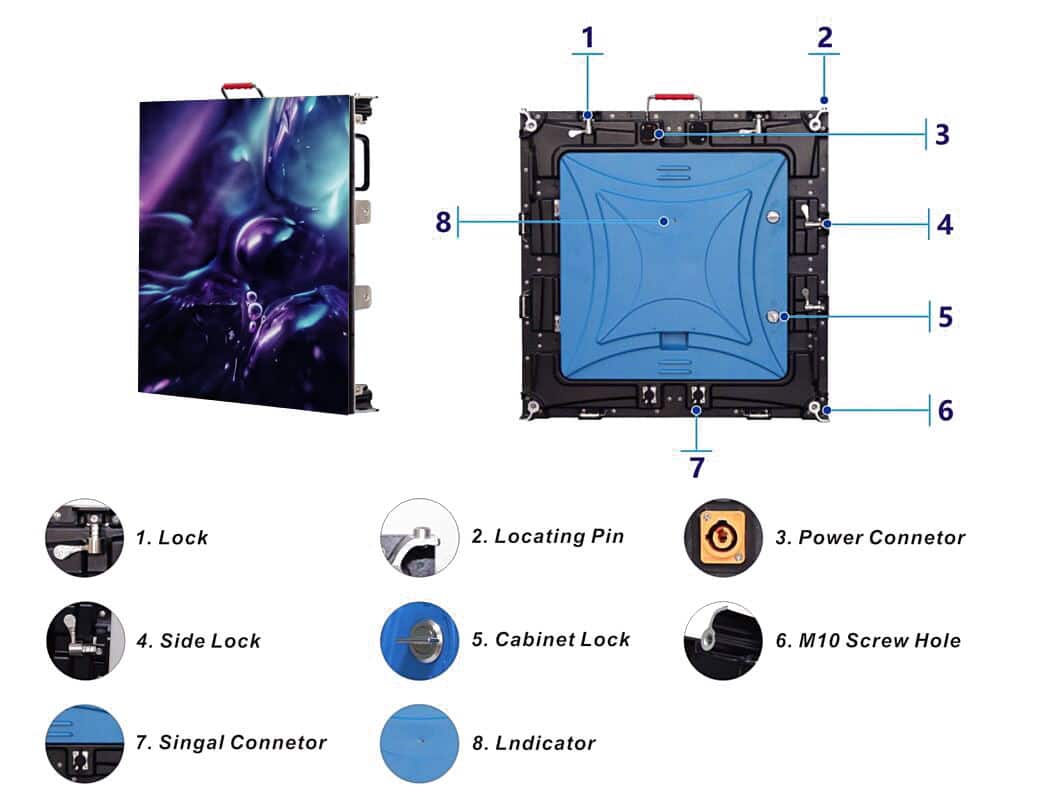

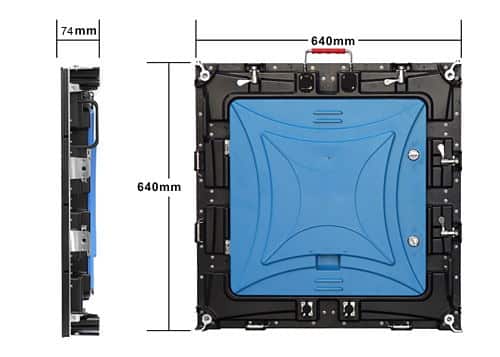

Standard Cabinet Size 640 x 640mm
640x640mm Standard size cabinet design.Suitable for all LED display units. 320x160mm Double-sided lock design for more secure installation.

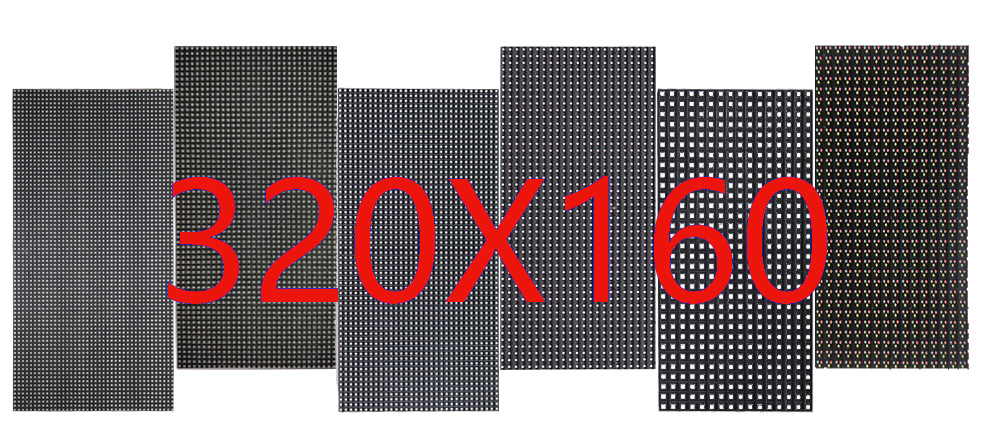

Standard Size Modulator 320x160mm
640x640mm LED display with panel Standard size: 320x160mm. Standard LED displays are quick to install and maintain. Changing the pixel spacing is also very convenient, just change the units because they have the same unit size and structure.

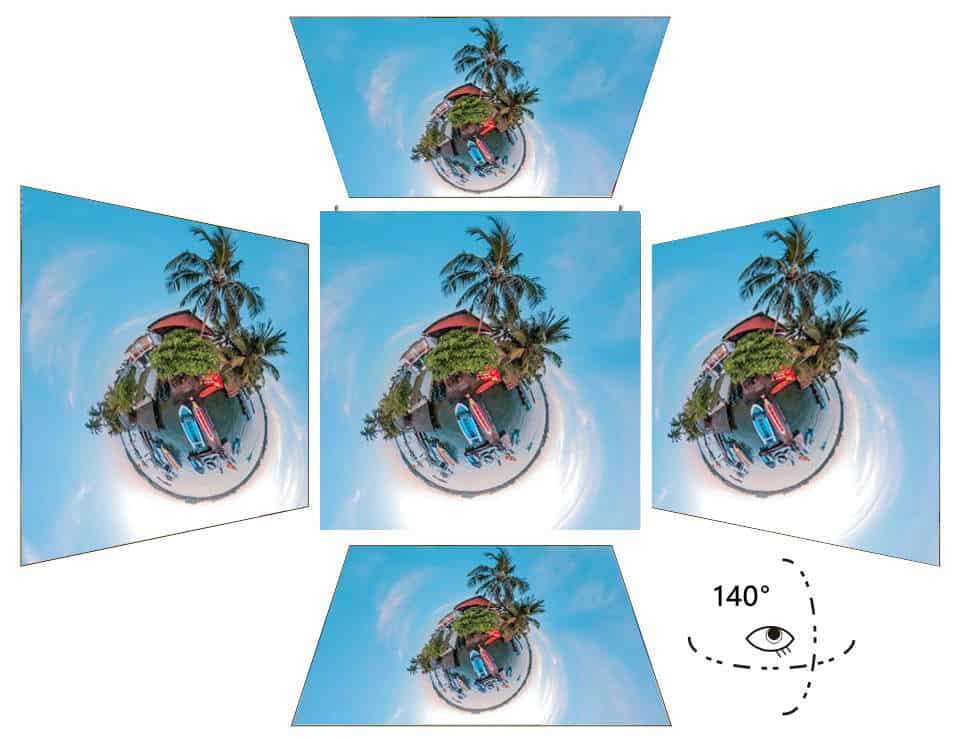

Wide Viewing Angle
The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.
Smooth Display And Visual Effects
The advanced assembled structure produces smooth display and visual effects, providing you with the perfect visual performance you want from your LED display. Image quality remains high due to better quality display materials.

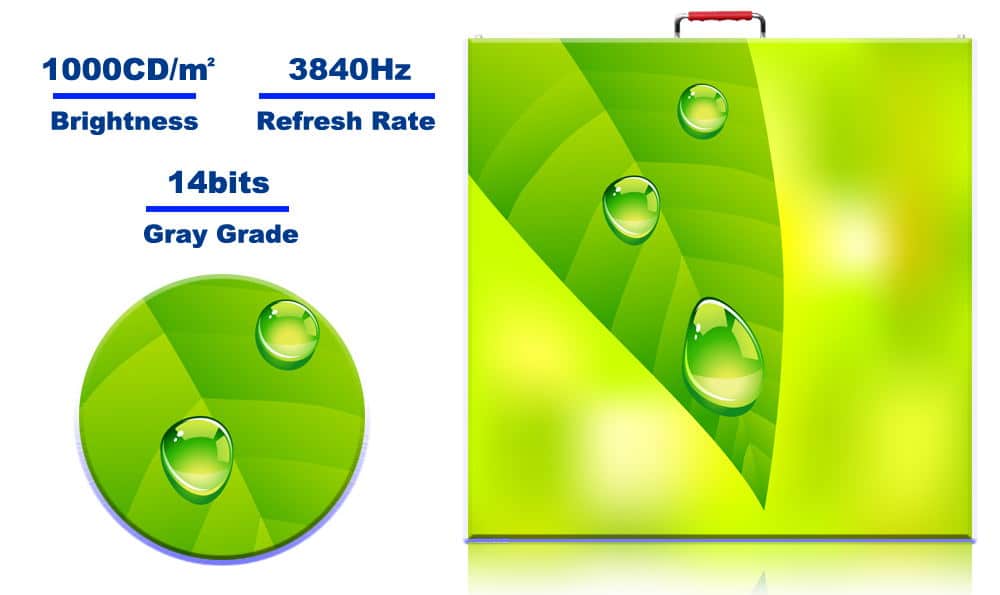

High Refresh Rate, High Contrast, High Brightness
Rental LED display has high brightness, high contrast, high refresh rate, high gray scale, LED display with vivid picture, clean video screen and great picture quality.
While adhering to the spirit of innovation, the Outdoor 640X640 SERIES Rental LED Display explains structure design and rigorous quality testing.
The product has improved the design quality, and embodies the human-centred rule.
It adopts special heat dissipation and waterproof structure, which has excellent heat dissipation effect, excellent waterproof effect, fanless design and completely silent operation.

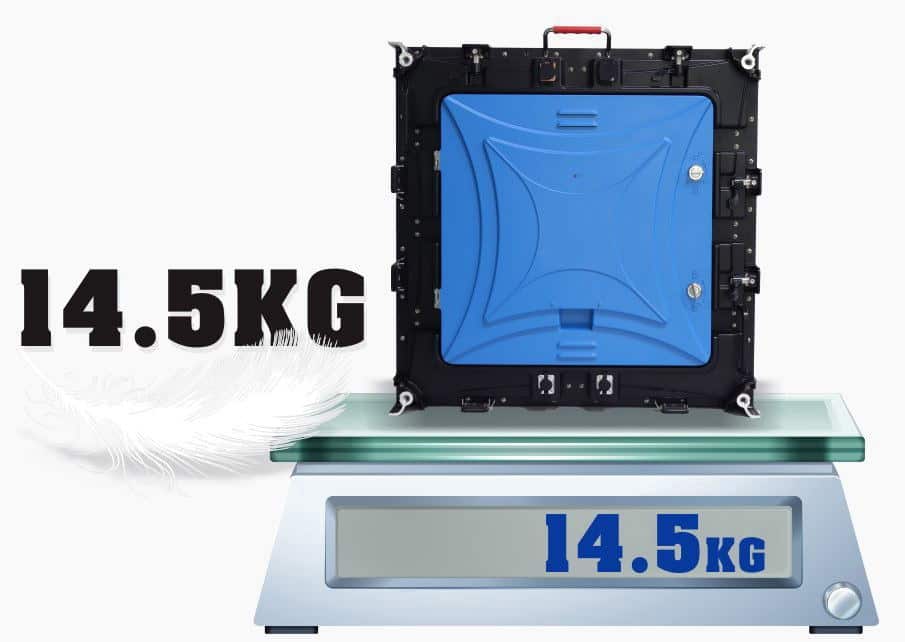

Ultra-lightweight Cabins
The display weight is only 14.5kg, easy to transport, save cost, and the light weight is convenient for installation, assembly and disassembly.
IP65 Waterproof And Corrosion Resistant
It is for outdoor use with high water level and dustproof level. It can withstand some bad weather during outdoor events.

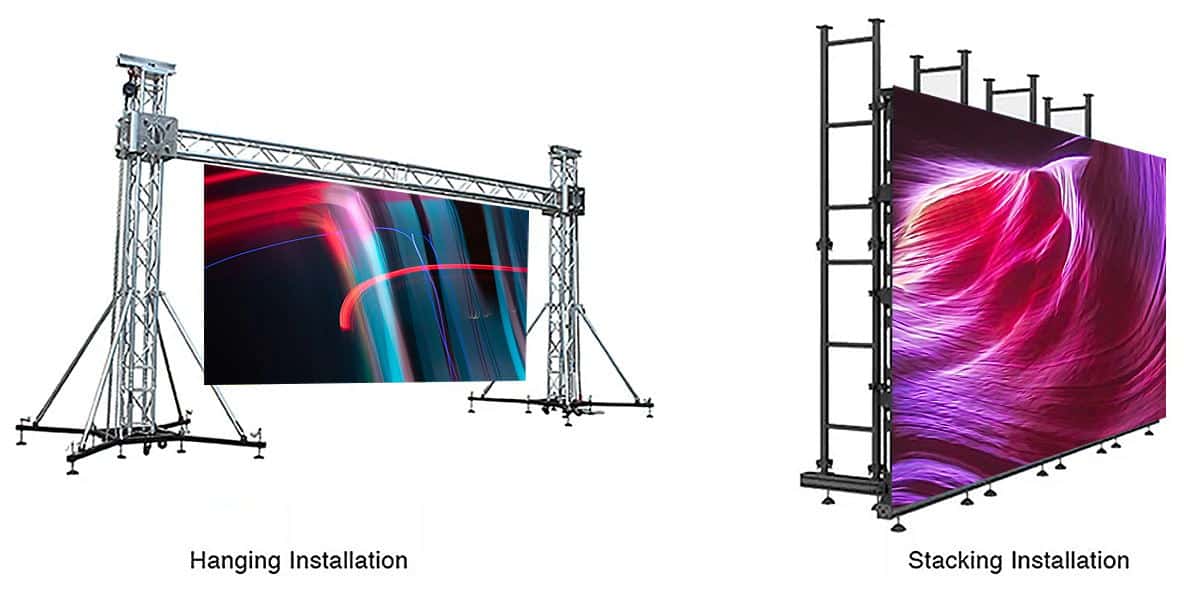

Easy Istallation
Equip with auxiliary installation structure, fast connect, single-person installation
Accessories Optional

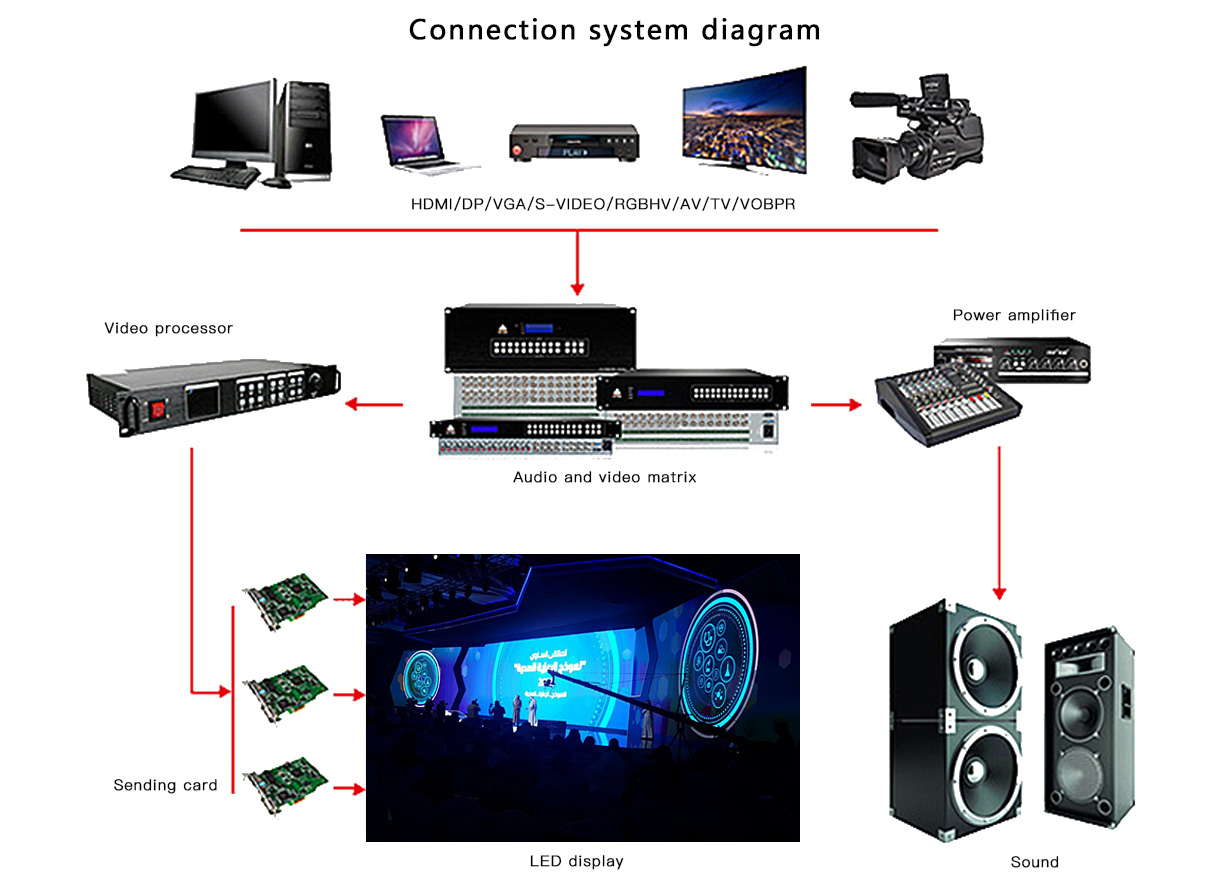

LED Displays Input Media Function
1. DVI interface
DVI interface, namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is High-Definition Multimedia Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

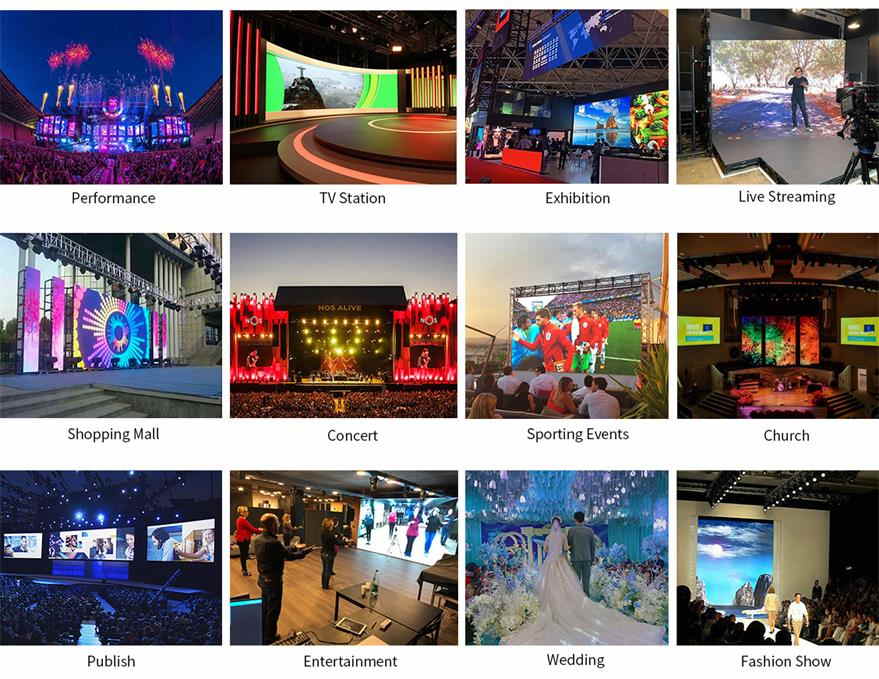

Application Fields
Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.
Parameters
Outdoor 640×640 Rental LED Display | ||||
|---|---|---|---|---|
| Pixel Pitch (mm) | P3.076 | P4 | P5 | P6.67 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD2727 | SMD3535 |
| Density (Pixels/㎡) | 105,688 | 62,500 | 40,000 | 22,500 |
| Module Resolution (Pixel) | 104×52 | 80×40 | 64×32 | 48×24 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/13 | 1/10 | 1/8 | 1/6 |
| Cabinet Size (mm) | 640×640 | 640×640 | 640×640 | 640×640 |
| Cabinet Weight (KG) | 12.5 | 12.5 | 12.5 | 12.5 |
| Brightness (CD/㎡) | ≥5,000 | ≥5,500 | ≥6,000 | ≥6,500 |
| Viewing Angle (°) | 120 | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 786 | 909 | 836 | 892 |
| Avg. Power Consumption (W/㎡) | 262 | 303 | 280 | 298 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 |
Indoor 640×640 Rental LED Display | |||||
|---|---|---|---|---|---|
| Pixel Pitch (mm) | P2 | P2.5 | P3.076 | P4 | P5 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Brightness (CD/㎡) | ≥800 | ≥1,000 | ≥1,000 | ≥800 | ≥800 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/26 | 1/20 | 1/16 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Avg. Power Consumption (W/㎡) | 150 | 153 | 138 | 117 | 104 |
| Viewing Angle (°) | 120 | 120 | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Max. Power Consumption (W/㎡) | 439 | 457 | 413 | 351 | 312 |
| Density (Pixels/㎡) | 250,000 | 160,000 | 105,688 | 62,500 | 40,000 |
| Cabinet Size (mm) | 640×640 | 640×640 | 640×640 | 640×640 | 640×640 |
| Module Resolution (Pixel) | 160×80 | 128×64 | 104×52 | 80×40 | 64×32 |
| Cabinet Weight (KG) | 9 | 9 | 9 | 9 | 9 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
Related Products

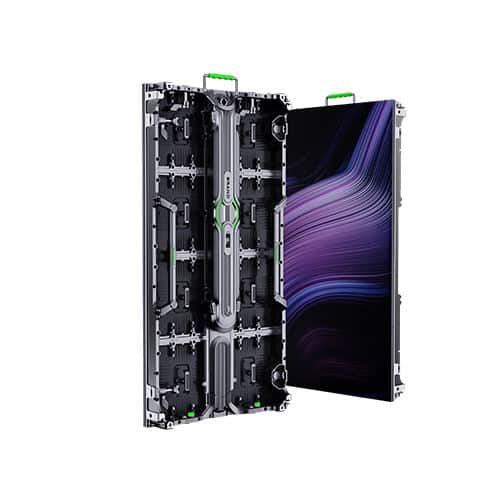

500PLUS SERIES
