Outdoor Rental LED Display 500x1000mm

1000Plus Series Rental LED display use high-quality SMD Led. Compared to other rental LED display in market, it’s prominent by the fine Pixel Pitch, high brightness, low Power Consumption and so on.

Indoor Outdoor Rental LED Screen P2.604 P2.976 P3.91 P4.81 P5.95

1000PLUS Series

1000PLUS is a robust 500 x 500/ 500 x 1000mm LED Display panel that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

1000PLUS is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Our screen is used high quality material, the gray scale is up to 14bits, refresh rate >1920Hz and the white balance is very pure. So performance of the screen is extraordinary and stable.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

CHENKSE LED Dipalys

Ordinary LED displays

High refresh

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

CHENKSE LED Dipalys

Ordinary LED displays

High contrast

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

CHENKSE LED Dipalys

Ordinary LED displays

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

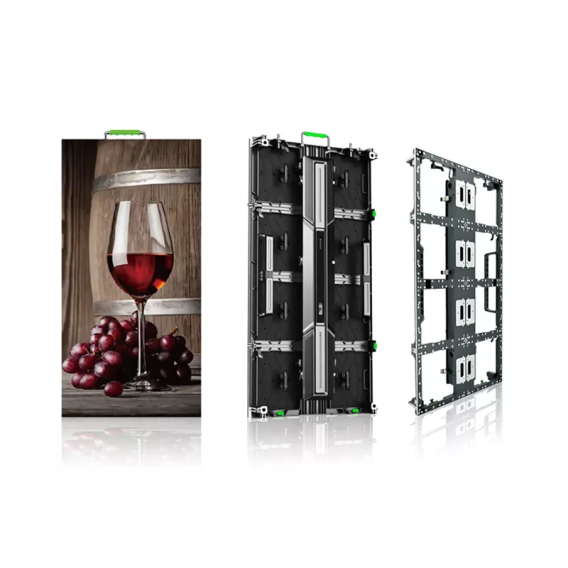

Die Casting Aluminum Cabinet Design

Indoor Outdoor Rental LED Display 500×1000 Pixel Pitch 2.6mm 2.9mm 3.9mm 4.8mm Great Cabinet Design

Indoor Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches are P3.9, P4.8, and P5.9. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Anti-collision pin corners of the cabinet protect the module and led lamps. Aluminum makes the cabinet waterproof for outdoor applications.

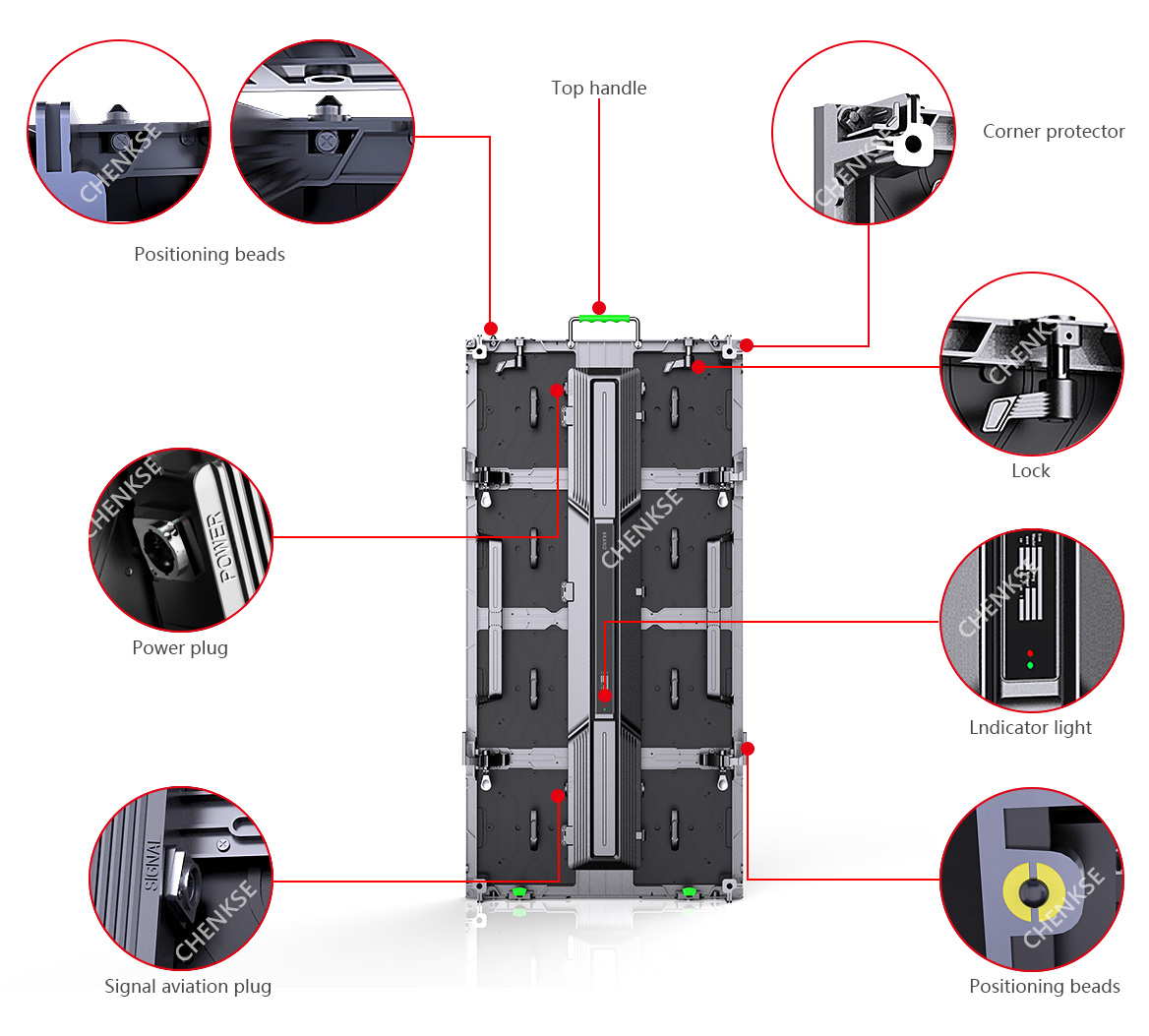

Perfect Cabinet Design With Each Part

1000PLUS Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness
%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

Wide Viewing Angle

The vertical and horizontal viewing angles can reach up to 160°. Providing a wide viewing angle.

1000Plus was inspired by devasting efect of storm ust like the performance of this LED display,containing a riot of color, grabbing and engrossing your audience.

Corner Prtection For Choose

You can choose to add the corner protection, designed to protect corners in both transit and staging.

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness
%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

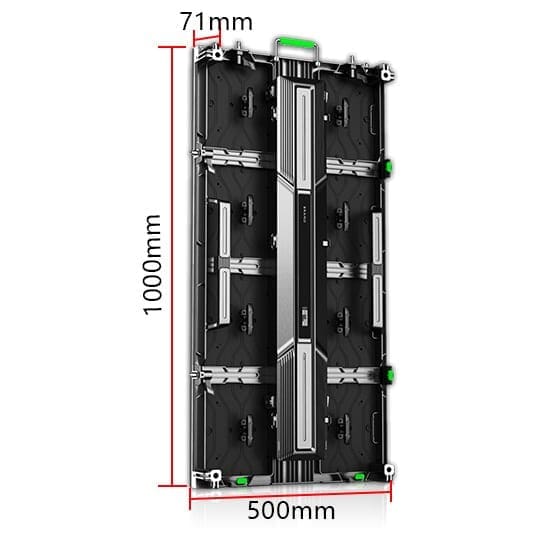

500*1000mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 71mm. For easy transport and Portable;

IP65 Outdoor Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness
%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

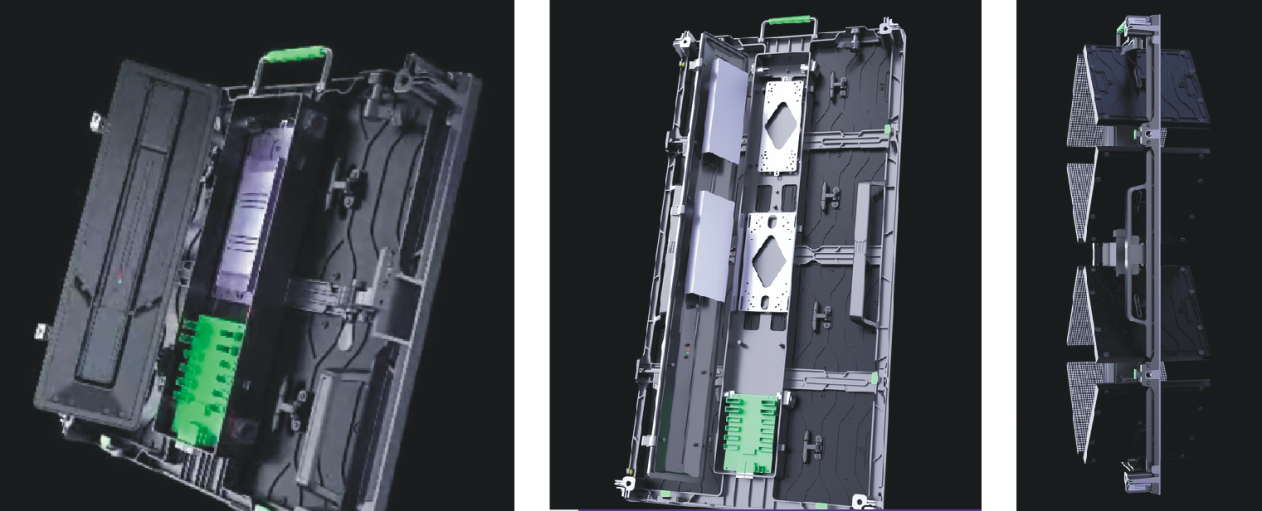

Easy Maintenance & Repairment

Front access or back access design is used in this panel. The module’s slim shape makes it even much easier to maintain. The receiving card, power supply, and hub card are built in a control box in the back of the cabinet. If there is any problem with the LED panel, you can check the whole control box in a short time.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Curved Screen & Seamless Splicing

The cabinet equips high-precision angle lock, available to splice flat screen and curved screen

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness
%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

LED Displays Input Media Function

1. DVI interface

DVI interface, namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is High-Definition Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Application Fields

Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.

%name CHENKSE LED 1000PLUS Series: Outdoor Rental LED Display with Fine Pixel Pitch and High Brightness

Parameters

Pixel pitch2.604mm2.976mm3.91mm4.81mm
Pixels per cabinet192×384 (HxV)168×336 (HxV)128×256 (HxV)104×208 (HxV)
LED lifetime100,000h (video – 50% brightness)
Brightness≥1000 nits;
Module size250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Refresh rate1920Hz~3840Hz
Hor. viewing angle140° +/-5° (@50% brightness)
Vert. viewing angle140° +/-5° (@50% brightness)
Brightness uniformity>98%
Dimming0-100%
Grey Level14 bits
Avg Power consumption350 W/m²320 W/m²300 W/m²280 W/m²
Max Power consumption680 W/m²640 W/m²620 W/m²600 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP33 for Indoor, IP65 for Outdoor
Dimensions500 x 1000 x 71 mm (WxHxD)/ 19.6 x 39.2 x 2.8 inch (WxHxD)
Weight / Tile13 kg / 28.66 lbs
ServiceabilityFront and back service
CertificationsCE, UL, FCC class A, RoHS, WEE, REACH
Warranty5 years standard product warranty
